Description
Stratus 2 Post Clear Floor Height Adjustable Direct Drive 10,000 lbs Capacity Single Point Manual Release Car Lift
Features
- Overhead / Clear floor design.
- Direct Drive.
- Single point manual release.
- 2 top limiter switches.
- Anti-surge valves.
- Proofed by dynamic test with 115% of rated capacity and static test with 150% rated capacity.
- Powder coating finish: Granite Gray (RAL 7026) + Rein orange (RAL 2004).
Specifications
| Model | C10A |
| Capacity | 10,000 LBS |
| Rise | |
| Max Lifting Height with Adaptors | 74 7/8” (1902 MM) |
| Min Lifting Height with Adaptors | 7 15/16 (202 MM) |
| Max Lifting without Adaptors | 70 7/8” (1800 MM) |
| Min Lifting without Adaptors | 3 15/16” (100 MM) |
| Rise Time | ~50 SEC |

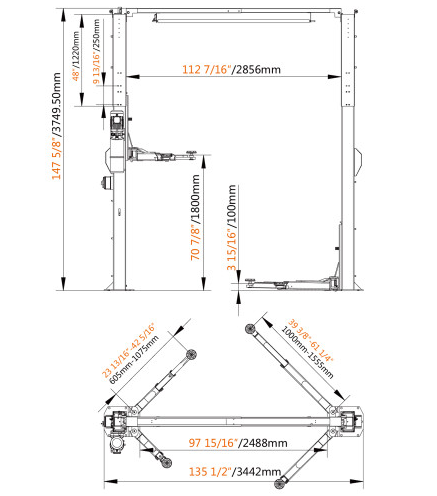

| Outside Dimensions | |
| Overall Height | 137 3/4” – 147 5/8” (3499 MM -3749.50 MM) |
| Overall Width | 15 3/4” (400 MM) |
| Overall Length | 135 1/2” (3442 MM) |
| Arms | |
| Front Arm Reach Max | 61 1/4” (1555 MM) |
| Front Arm Reach Min | 39 3/8” (1000 MM) |
| Rear Arm Reach Max | 42 5/16” (1075 MM) |
| Rear Arm Reach Min | 23 13/16” (605 MM) |
| Power Unit | |
| Motor | 3 HP, 220V, 60 HZ, 1ph |
| Oil | AW32 or AW46 |
| Breaker | 30A |
| Shipping | |
| Weight | 1,674 LBS |
| Dimension | 110” L * 45” W * 24” H |
| Concrete | |
| Requirements | 6” – 3000 PSI |
Optional Accessories (Sold Separately)
*Important Notes
1. A $250 surcharge apply to shipping in the following states: OR, WA, ID, MT, ND, SD, ME.
2. The buyer is always responsible for unloading the product from the truck, a forklift or similar equipment is required for unloading.
3. Discounts provided for pickups in College Station, Texas Warehouse.
Downloads
Warranty Information
Warranty Information
- 5 years lifting structure, 3 years hydraulic, and 2 years electrical.
- Note: Parts only and labor costs for someone to install the replacement part are NOT covered. The hydraulic cylinders come with a 30-day full warranty and after 30 days we will provide a seal kit.
- Capacity:
- 10,000 Lbs
