Stratus SAE-P48C G3 4 Post 8,000 LBS Capacity Manual Release Compact Storage Parking Car Lift With Casters

*Shown with Aluminum ramps (Sold Separately)

Features

• Space-saving compact design.
• Hands-free lock release latch system.
• Relocatable Power Unit.
• Cable Failure Protection -Second safety device will be automatically locked while primary safety locks are out of operation.
• Multi-level locking positions (9 locking positions).
• Manual Safety Lock Release.
• Proofed by dynamic test with 115% of rated capacity and static test with 150% rated capacity.
• Powder coating finish: Granite Gray (RAL 7026) + Rein Orange (RAL 2004).

Technical Specification

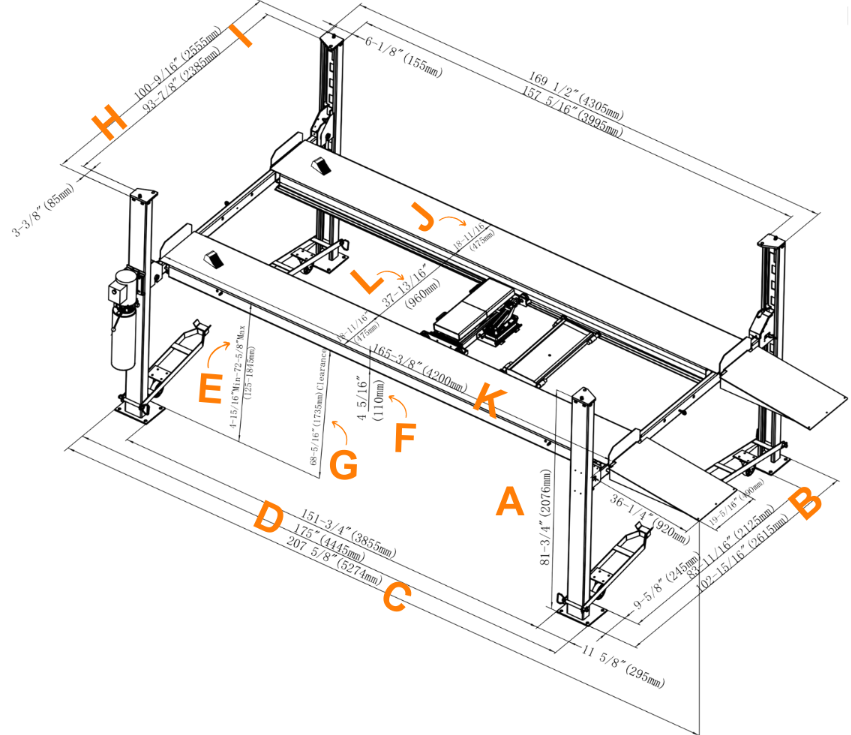

Model  P48C G3  Capacity  8,000 LBS A  Overall Height  81 3/4" (2076 MM) B  Overall Width  102 15/1 6" (2615 MM) C  Overall Length w/ ramps  207 5/8" (5274 MM) D  Overall Length w/o ramps  175" (4445 MM) E  Max Lifting Height  72 5/8" (1845 MM) F  Min Lifting Height  4 5/1 6" (125MM) G  Clearance Height  68 5/1 6" (1735 MM)    Lifting Time  ~50 SEC H  Width Outside Columns  100 9/16" (2555 MM) I  Width Inside Columns  93 7/8" (2385 MM) J  Runway width  18 11/16" (475 MM) K  Runway Length  165 3/8" (4200 MM) L  Width Between Runways  37 13/16" (960 MM)    Motor  3 HP, 110V, 60 HZ, 1ph  Oil Type / Amount  AW32 or AW46 / ~2,5 Gallons  Breaker  30A  Shipping Weight  1,823 LBS  Shipping Size  167” L * 22” W * 30” H

Optional Accessories (Sold Separately)

• BJ5 Rolling bridge jack
• Aluminum ramps

*Important Notes

1. A $250 surcharge apply to shipping in the following states: OR, WA, ID, MT, ND, SD, ME.
2. The buyer is always responsible for unloading the product from the truck, a forklift or similar equipment is required for unloading.
3. Discounts provided for pickups in College Station, Texas Warehouse.

Downloads

 Manual

 Brochure
