Stratus SAE-P410 4 Post 10,000 lbs Capacity Manual Release Storage Lift
Stratus 4 Post 10,000 Lbs Capacity Manual Release Storage Car Lift Sae-P410 (*Caster Kit Sold Separately)
Limited Access Zones
Features
- Manual safety lock release.
- Hassle-free lock mechanism release system.
- Mechanic locks automatically engaged to lock position in ascending processing.
- Imbalance protection, safe and reliable.
- Self-lubricating pulleys and pre-tensioned cable.
- Proofed by dynamic test with 115% of rated capacity and static test with 150% rated capacity.
- Powder coating finish: Granite Gray (RAL 7026) + Reinorange (RAL 2004).
Technical Specification
| Model | P410 |
| Capacity | 10,000 LBS |
| Rise | |
| Min lifting height | 5 1/2” (140 MM) |
| Max lifting height | 83 1/16” (2110 MM) |
| Lifting Time | ~90 SEC |
| Clearance Height | 77 9/16” (1970 MM) |
| Outside Dimensions | |
| Overall Height | 97 5/16” (2472 MM) |
| Overall Width | 135 13/16” (3450 MM) |
| Overall Length w/ ramps | 234 1/8” (5946 MM) |
| Overall Length w/o ramps | 202 3/8” (5141 MM) |
| Inside Dimensions | |
| Width columns | 112 3/16” (2850 MM) |
| Drive Thru | 79 3/4” (2026 MM) |
| Runways | |
| Runway width | 21 1/16” (535 MM) |
| Runway Length | 192 15/16” (4900 MM) |
| Between Runways | 37 5/8” (956 MM) |
| Power Unit | |
| Motor | 3 HP, 220V, 60 HZ, 1ph |
| Oil | AW32 or AW46 |
| Breaker | 20A |
| Shipping | |
| Weight | 2,646 LBS |
| Dimension | 196” L * 25” W * 30” H |
Optional Accessories (*Sold separately)

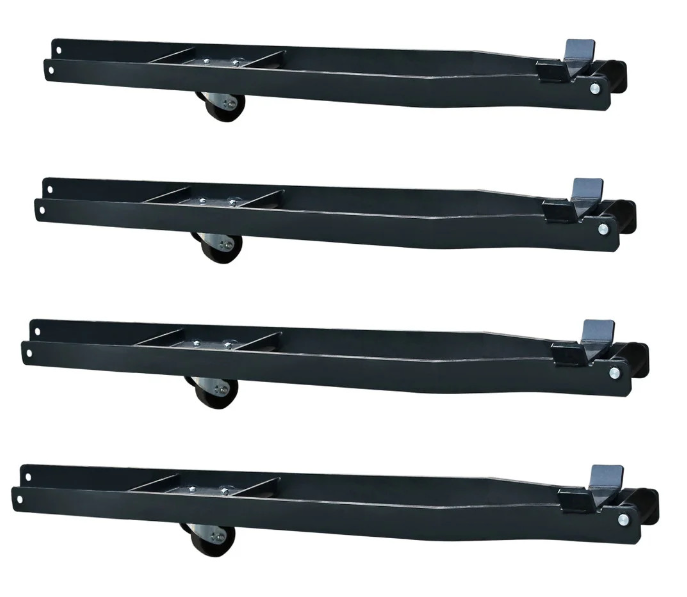

| SAE-BJ5 Sliding Bridge Jack | Castor Kit | |
 |  |
*Important Notes
1. A $250 surcharge apply to shipping in the following states: OR, WA, ID, MT, ND, SD, ME.
2. The buyer is always responsible for unloading the product from the truck, a forklift or similar equipment is required for unloading.
3. Discounts provided for pickups in College Station, Texas Warehouse.
Downloads
Warranty Information
- 5 years lifting structure, 3 years hydraulic, and 2 years electrical.
- Note: Parts only and labor costs for someone to install the replacement part are NOT covered. The hydraulic cylinders come with a 30-day full warranty and after 30 days we will provide a seal kit.
