Stratus SAE-N70 Stratus Nitrogen Inflator
Optimize your tire inflation process with the Nitrogen Tire Inflator, designed for precision and efficiency. This advanced nitrogen tire inflation equipment ensures consistent pressure, improved fuel economy, and extended tire life. Ideal for professional garages, it features a nitrogen generator tire inflator for on-demand nitrogen production, enhancing convenience and reliability. Equip your workspace with this essential tool and experience the benefits of nitrogen inflation technology!
Limited Access Zones
Features
- Optional fill with nitrogen or common air.
- Using BF-220# high-energy carbon molecular sieve.
- According to the set pressure, it can automatically vacuumize, fill with nitrogen and test the pressure.
- There is no need for additional vacuuming equipment, one-click completion vacuuming and nitrogen filling.
Technical Specification
| Vehicle Applicable | Motorcycle, Pickup Truck, Sedan |
| Power Supply | 220V / 1PH / 60 HZ |
| Rated Power | 60W |
| Nitrogen Purity | 95-99.5% |
| Intake Pressure | 8-10 BAR / 116~145 PSI |
| Storage Tank Capacity | 70L /18.5 GAL |
| Compressed Air Input Range | ≤ 174 PSI/12 BAR |
| Nitrogen Output | 66L/min (2.3cfm) @ 145 PSI/10 BAR |
| Nitrogen Storage Tank | 70L/18.5 GAL |
| Nitrogen Output Pressure | ≤ 87 PSI/6.0 BAR |
| Operation Temp | 41°F~+104°F / 5℃~+40℃ |
| Testing Range | 5-110 PSI / 0.3-8 BAR |
| Accuracy | ±0.5 PSI /0.03 BAR |
| Display | LED |

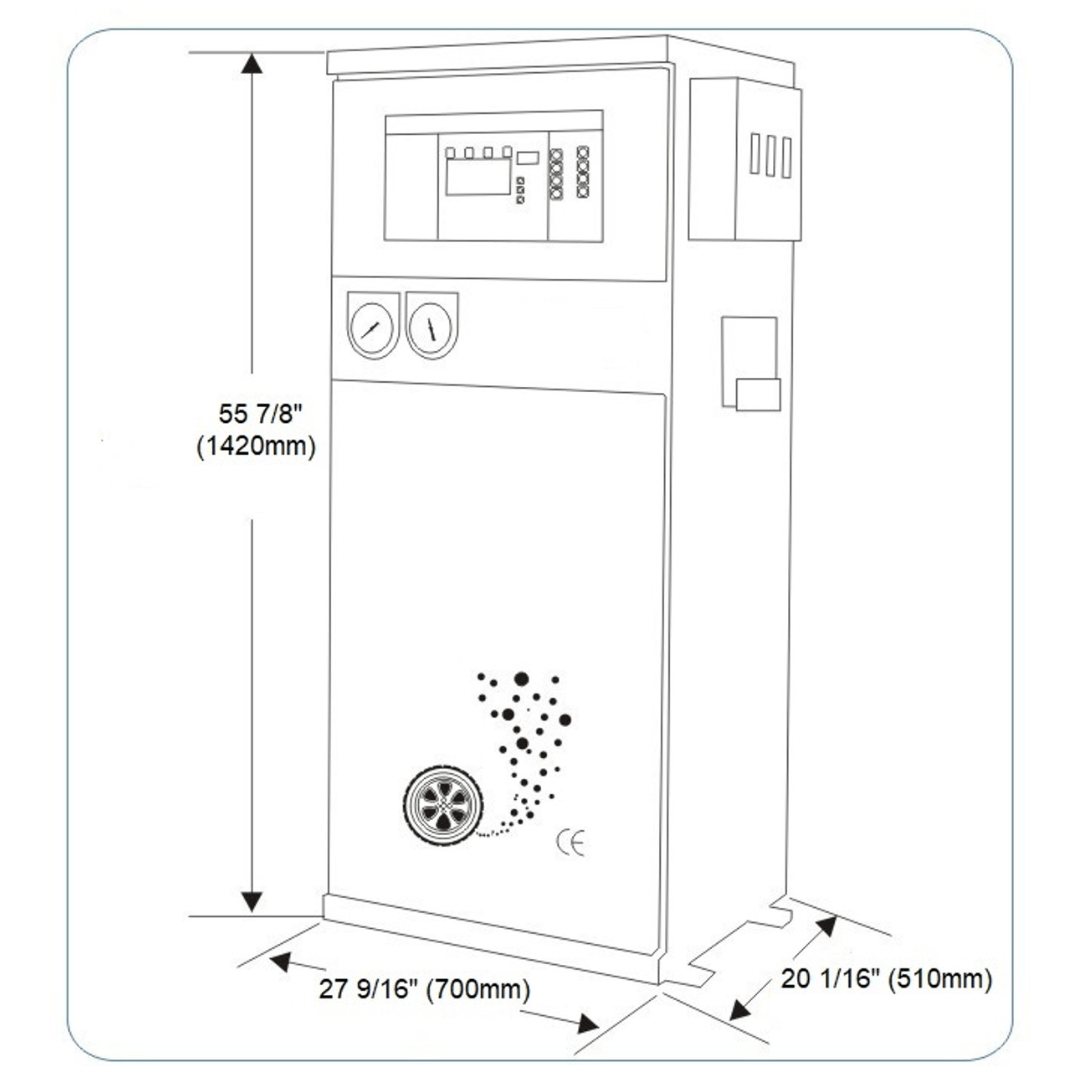

| Dimension | 28"L * 20"W * 56"H |
| Net Weight | 282 LBS |
| Shipping Size | 30L * 25W * 61"H |
| Shipping Weight | 320 LBS |
*Important Notes
1. A $250 surcharge apply to shipping in the following states: OR, WA, ID, MT, ND, SD, ME.
2. The buyer is always responsible for unloading the product from the truck, a forklift or similar equipment is required for unloading.
3. Discounts provided for pickups in College Station, Texas Warehouse.
Warranty Information
- 5 years lifting structure, 3 years hydraulic, and 2 years electrical.
- Note: Parts only and labor costs for someone to install the replacement part are NOT covered. The hydraulic cylinders come with a 30-day full warranty and after 30 days we will provide a seal kit.
