Stratus SAE-F12X Extra Wide Floor Plate 12,000 lbs Capacity Single (1) Point Manual Release Lift
Looking for the best 2 post car lift with a 12,000 lb capacity? This durable and powerful lift is essential for any auto shop or car enthusiast, ensuring safety and efficiency for all your heavy-duty repairs. Ideal for use in car spare parts stores or car auto spare parts shops, this lift offers reliable support for vehicles of various sizes.
Limited Access Zones
Features
- Base Plate / Open Top.
- Single point manual release.
- Multi-strand, non-rotary, non-stretchy cable.
- Top limiter switch.
- Stable and reliable, easy maintenance.
- Proofed by dynamic test with 115% of rated capacity and static test with 150% rated capacity.
- Powder coating finish: Granite Gray (RAL 7026) + Rein orange (RAL 2004).
Technical Specification
| Model | SAE-F12X |
| Capacity | 12,000 LBS |
| Rise | |
| Max Lifting Height with Adaptors | 78 13/16” (2002 MM) |
| Min Lifting Height with Adaptors | 8 1/8” (207 MM) |
| Max Lifting without Adaptors | 74 13/16“(1900 MM) |
| Min Lifting without Adaptors | 4 15/16” (125 MM) |
| Rise Time | ~55SEC |

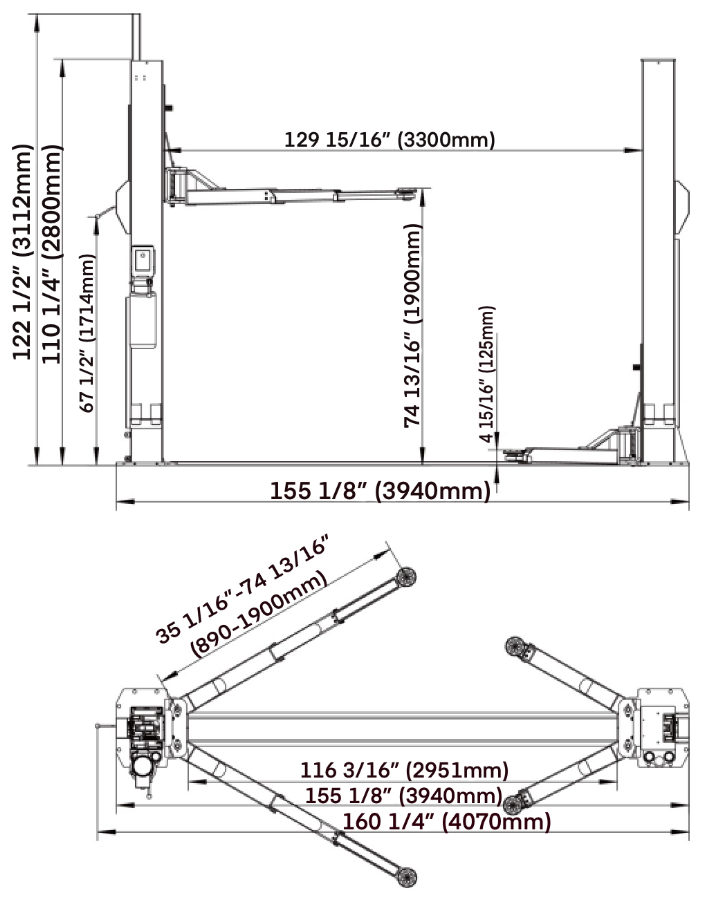

| Outside Dimensions | |
| Overall Height | 122 1/2” (3112 MM) |
| Overall Width | 21 1/4” (540 MM) |
| Overall Length | 160 1/4” (4070 MM) |
| Inside Dimensions | |
| Inside Columns | 129 15/16” (3300 MM) |
| Drive Thru | 116 3/16” (2951 MM) |
| Arms | |
| Front Arm Reach Max | 74 13/16” (1900 MM) |
| Front Arm Reach Min | 35 1/16” (890 MM) |
| Rear Arm Reach Max | 74 13/16” (1800 MM) |
| Rear Arm Reach Min | 35 1/16” (890 MM) |
| Power Unit | |
| Motor | 4 HP, 220V, 60 HZ, 1PH |
| Oil | AW32 or AW46 |
| Breaker | 30A |
| Shipping | |
| Weight | 1,980 LBS |
| Dimension | 112” L * 41” W * 29” H |
| Concrete | |
| Requirements | 6” – 3000 PSI |
*Important Notes
1. A $250 surcharge apply to shipping in the following states: OR, WA, ID, MT, ND, SD, ME.
2. The buyer is always responsible for unloading the product from the truck, a forklift or similar equipment is required for unloading.
3. Discounts provided for pickups in College Station, Texas Warehouse.
Downloads
Warranty Information
- 5 years lifting structure, 3 years hydraulic, and 2 years electrical.
- Note: Parts only and labor costs for someone to install the replacement part are NOT covered. The hydraulic cylinders come with a 30-day full warranty and after 30 days we will provide a seal kit.
