Stratus SAE-F10X Extra Wide Drive Through Floor Plate 10,000 LBS Capacity Single Point Manual Release Car Lift

SKU: SAE-F10X

$4,716.00

$5,659.00

(You save $943.00 )

Current Stock:

Call Us: 800‑562‑4791 Live Chat With an Expert

SKU:

SAE-F10X

Condition:

New

Availability:

Clearance, will be discontinued. Call us for availability.

Shipping:

Free Shipping

Capacity:

10,000 Lbs

Description
Warranty Information
Reviews

Description

Stratus SAE-F10X Extra Wide Drive Through Floor Plate 10,000 LBS Capacity Single Point Manual Release Car Lift

Features

Base Plate / Open Top.
Single point manual release.
Top limiter switch.
Proofed by dynamic test with 115% of rated capacity and static test with 150% rated capacity.
Powder coating finish: Granite Gray (RAL 7026) + Rein orange (RAL 2004).

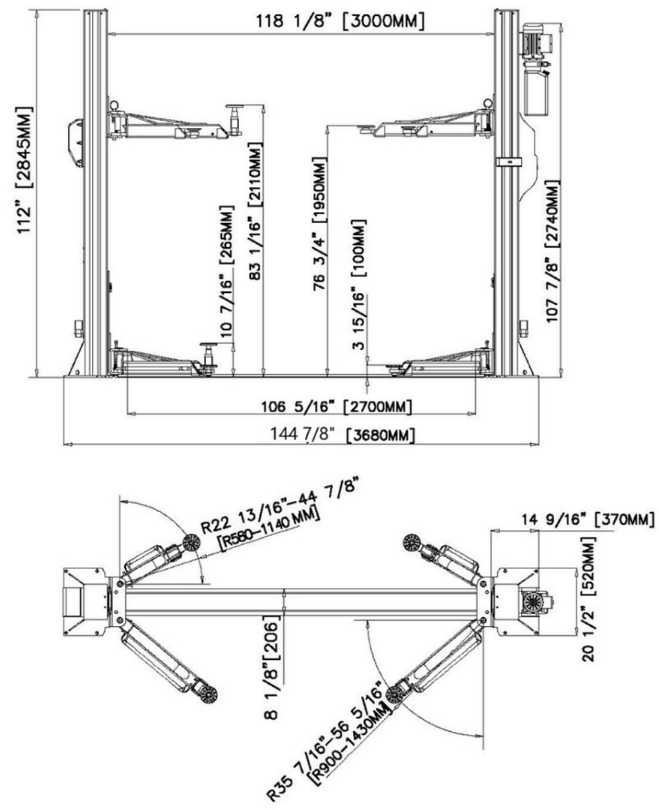

Technical Specification

Model	F10X
Capacity	10,000 LBS
Max Lifting Height with Adaptors	83 1/16 (2110 MM)
Min Lifting Height with Adaptors	10 7/16” (265 MM)
Max Lifting without Adaptors	76 3/4 (1950 MM)
Min Lifting without Adaptors	3 15/16” (100 MM)
Rise Time	~50 SEC
Overall Height	112” (2845 MM)
Overall Width	20 1/2” (520 MM)
Overall Length	144 7/8” (3680 MM)
Inside Columns	118 1/8” (3000 MM)
Drive Thru	106 5/16” (2700 MM)
Front Arm Reach Max	56 5/16” (1430 MM)
Front Arm Reach Min	35 7/16” (900 MM)
Rear Arm Reach Max	44 7/8” (1140 MM)
Rear Arm Reach Min	22 13/16” (580 MM)
Motor	3 HP, 220V, 60 HZ, 1PH
Oil	AW32 or AW46
Breaker	30A
Weight	1345 LBS
Dimension	117" x 13" x 45"
Requirements	6" - 3000 PSI

Optional Accessories (Sold Separately)

*Important Notes

1. A $250 surcharge apply to shipping in the following states: OR, WA, ID, MT, ND, SD, ME.
2. The buyer is always responsible for unloading the product from the truck, a forklift or similar equipment is required for unloading.
3. Discounts provided for pickups in College Station, Texas Warehouse.

Downloads

Manual

Brochure

Warranty Information

5 years lifting structure, 3 years hydraulic, and 2 years electrical.
Note: Parts only and labor costs for someone to install the replacement part are NOT covered. The hydraulic cylinders come with a 30-day full warranty and after 30 days we will provide a seal kit.
