Stratus SAE-F10P Pro Floor Plate Open Top 10,000 lbs Capacity Single Point Manual Release Lift
Upgrade your garage with the 10,000 lb 2 Post Lift, designed for durability and efficiency in automotive repairs. This 10,000-pound 2 Post Car Lift is perfect for professionals and enthusiasts, offering a reliable solution for lifting vehicles of various sizes. Its robust construction ensures safety and smooth operation, making it an essential tool for maintenance and inspections.
Features
- Base plate / Open top.
- Single point manual release.
- Top limiter switch.
- CE certified.
- Proofed by dynamic test with 115% of rated capacity and static test with 150% rated capacity.
- Powder coating finish: Granite Gray (RAL 7026) + Reinorange (RAL 2004).

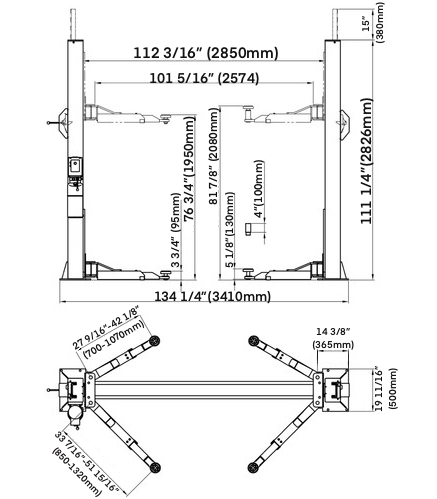

Technical Specification
| Model | F10P |
| Capacity | 10,000 LBS |
| Rise | |
| Max Lifting Height with Adaptors | 81 7/8” (2080 MM) |
| Min Lifting Height with Adaptors | 5 1/8” (130 MM) |
| Max Lifting without Adaptors | 76 3/4” (1950 MM) |
| Min Lifting without Adaptors | 3 3/4” (95 MM) |
| Rise Time | ~50SEC |
| Outside Dimensions | |
| Overall Height | 111 1/4” (2826 MM) |
| Overall Width | 19 11/16” (500 MM) |
| Overall Length | 134 1/4” (3410 MM) |
| Inside Dimensions | |
| Inside Columns | 112 3/16” (2850 MM) |
| Drive Thru | 101 5/16” (2574 MM) |
| Arms | |
| Front Arm Reach Max | 56 15/16” (1440 MM) |
| Front Arm Reach Min | 34 5/8” (880 MM) |
| Rear Arm Reach Max | 48 7/16” (1230 MM) |
| Rear Arm Reach Min | 26 3/4” (680 MM) |
| Power Unit | |
| Motor | 3 HP, 220V, 60 HZ, 1PH |
| Oil | AW32 or AW46 |
| Breaker | 30A |
| Shipping | |
| Weight | 1,385 LBS |
| Dimension | 116” L * 25” W * 35” H |
| Concrete | |
| Requirements | 6” – 3000 PSI |
*Important Notes
1. A $250 surcharge apply to shipping in the following states: OR, WA, ID, MT, ND, SD, ME.
2. The buyer is always responsible for unloading the product from the truck, a forklift or similar equipment is required for unloading.
3. Discounts provided for pickups in College Station, Texas Warehouse.
Downloads
Warranty Information
Warranty Information
- 5 years lifting structure, 3 years hydraulic, and 2 years electrical.
- Note: Parts only and labor costs for someone to install the replacement part are NOT covered. The hydraulic cylinders come with a 30-day full warranty and after 30 days we will provide a seal kit.
- Capacity:
- 10,000 Lbs
- Free Shipping:
- Yes
