Stratus SAE-C9P Clear Floor Direct Drive 9,000 LBS Capacity Single Point Manual Release Vehicle Lift
Features
- Overhead / Clear floor design.
- Single point manual release.
- Direct Drive.
- 2 top limiter switches.
- Anti-surge valves.
- Proofed by dynamic test with 115% of rated capacity and static test with 150% rated capacity.
- Powder coating finish: Granite Gray (RAL 7026) + Rein orange (RAL 2004).

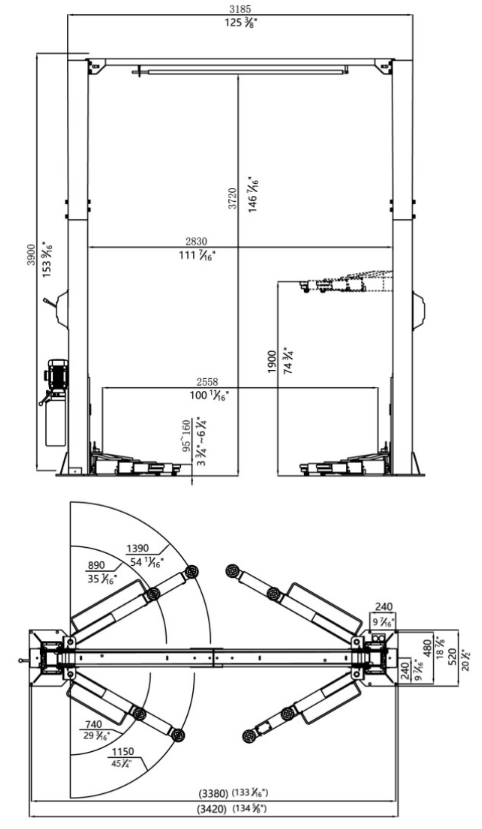

Technical Specification
| Model | C9P | | Capacity | 9,000 LBS | | Max Lifting Height with Adaptors | 78 7/8" (1900 MM) | | Min Lifting Height with Adaptors | 7 3/4” (197 MM) | | Max Lifting without Adaptors | 74 3/4” (1900 MM) | | Min Lifting without Adaptors | 3 3/4" | | Rise Time | ~50 SEC | | Overall Height | 20 1/2” (520 MM) | | Overall Width | 134 5/8” (3420 MM) | | Overall Length | 155 1/8” (3940 MM) | | Inside Columns | 111 7/16” (2830 MM) | | Drive Thru | 100 11/16” (2558 MM) | | Front Arm Reach Max | 45 1/4” (1150 MM) | | Front Arm Reach Min | 29 3/16” (740 MM) | | Rear Arm Reach Max | 54 11/16” (1390 MM) | | Rear Arm Reach Min | 35 1/16” (890 MM) | | Motor | 3 HP, 220V, 60 HZ, 1ph | | Oil | AW32 or AW46 | | Breaker | 30A | | Weight | 1,433 LBS | | Dimension | 112” L * 23” W * 41” H | | Requirements | 6" - 3000 PSI | | |  |
Optional Accessories (Sold Separately)
*Important Notes
1. A $250 surcharge apply to shipping in the following states: OR, WA, ID, MT, ND, SD, ME.
2. The buyer is always responsible for unloading the product from the truck, a forklift or similar equipment is required for unloading.
3. Discounts provided for pickups in College Station, Texas Warehouse.
Downloads
Manual
Brochure
