Stratus SAE-C10X Extra Wide Asymmetric & Symmetric 2-In-1 Clear Floor Direct Drive 10,000 LBS Capacity Single Point Manual Release Car Lift

Features

  • Extra wide drive through:
      • 112”- Symmetrical.
      • 107 11/16"- Asymmetrical.
  • Heavy duty 14-folds columns.
  • Clear floor.
  • Symmetric & Asymmetric 2-in-1 design.
  • Electric safety lock release.
  • Direct drive.
  • 2 top limiter switches.
  • Anti-surge valves.
  • Automatic arms restraints.
  • Proofed by dynamic test with 115% of rated capacity and static test with 150% rated capacity.
  • Powder coating finish: Granite Gray (RAL 7026) + Rein orange (RAL 2004).

Technical Specification

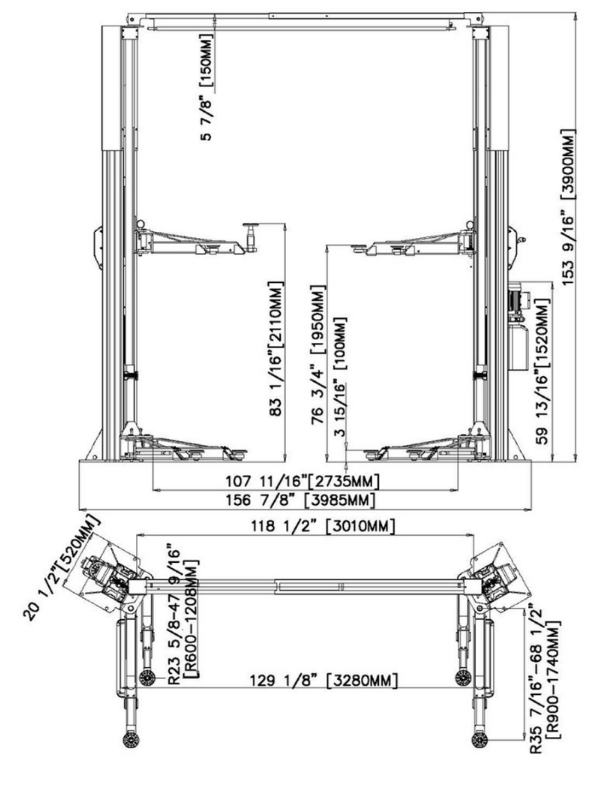

 Model  C10X Asymmetrical
 Capacity  10,000 LBS
 Max Lifting Height with Adaptors  83 1/16" (2110 MM)
 Min Lifting Height with Adaptors  10 1/4"(261 MM)
 Max Lifting without Adaptors  76 3/4" (1950 MM)
 Min Lifting without Adaptors  3 15/16” (100 MM)
 Rise Time  ~50 SEC
 Overall Height  153 9/16" (3900 MM)
 Overall Width  20 1/2" (520 MM)
 Overall Length  156 7/8" (3985 MM)
 Inside Columns  118 1/2" (3010 MM)
 Drive Thru  107 11/16" (2735 MM)
 Front Arm Reach Max  68 1/2" (1740 MM)
 Front Arm Reach Min  35 7/16" (900 MM)
 Rear Arm Reach Max  47 9/16" (1208 MM)
 Rear Arm Reach Min  23 5/8" (600 MM)
 Motor  3 HP, 220V, 60 HZ, 1ph
 Oil  AW32 or AW46
 Breaker  30A
 Weight  1718 LBS
 Dimension Flat  115” L * 29” W * 35” H
 Dimension Tall  117” * 29” * 44”
 Requirements  6" - 3000 PSI

 Model  C10X Symmetrical
 Capacity  10,000 LBS
 Max Lifting Height with Adaptors  83 1/16" (2110 MM)
 Min Lifting Height with Adaptors  10 1/4"(261 MM)
 Max Lifting without Adaptors  76 3/4" (1950 MM)
 Min Lifting without Adaptors  3 15/16” (100 MM)
 Rise Time  ~50 SEC
 Overall Height  153 9/16" (3900 MM)
 Overall Width  20 1/2" (520 MM)
 Overall Length  150 13/16" (3830 MM)
 Inside Columns  124" (3150 MM)
 Drive Thru  112 3/16" (2850 MM)
 Front Arm Reach Max  68 1/2" (1740 MM)
 Front Arm Reach Min  35 7/16" (900 MM)
 Rear Arm Reach Max  47 9/16" (1208 MM)
 Rear Arm Reach Min  23 5/8" (600 MM)
 Motor  3 HP, 220V, 60 HZ, 1ph
 Oil  AW32 or AW46
 Breaker  30A
 Weight  1718 LBS
 Dimension Flat  115” L * 29” W * 35” H
 Dimension Tall  117” * 29” * 44”
 Requirements  6" - 3000 PSI




Optional Accessories (Sold Separately)

*Important Notes

1. A $250 surcharge apply to shipping in the following states: OR, WA, ID, MT, ND, SD, ME.
2. The buyer is always responsible for unloading the product from the truck, a forklift or similar equipment is required for unloading.
3. Discounts provided for pickups in College Station, Texas Warehouse.

Downloads

pdf.jpg Manual

pdf.jpg Brochure

Warranty Information

  • 5 years lifting structure, 3 years hydraulic, and 2 years electrical.
  • Note: Parts only and labor costs for someone to install the replacement part are NOT covered. The hydraulic cylinders come with a 30-day full warranty and after 30 days we will provide a seal kit.
