Reelcraft 83000 OLS 3/4 in. x 50 ft. Stainless Steel Hose Reel

Reelcraft

SKU:
83000 OLS
UPC:
00699567002635
Condition:
New
Availability:
Please conatct us at 800-562-4791 for pricing and availability.

Reelcraft 83000 OLS 3/4 in. x 50 ft. Stainless Steel Hose Reel

Reelcraft’s stainless steel hose reels are ideal for food processing, pre-rinse, wash down, chemical transfer, and industrial-solvent handling. Also suitable for coastal, offshore, and on-board ship in marine applications where the harsh environment of salt water spray requires the use of stainless hose reels. Swivel include Viton O-rings. Note: Standard latch parts are made from aluminum. Series 80000 and D80000 stainless reels have an aluminum fluid path. Stainless latch parts and fluid path are available as a standard option by placing a -S at the end of the part number. Example: OLS-S

  • Reinforced steel – The steel guide arm and dual pedestal base are stamped with ribs and gussets and robotically welded to ensure maximum strength and lightest possible weight. The unitized cast fluid path and ratchet reduce wearable parts and ease of assembly.
  • Full flow stress free swivel design – The full flow swivel combines the highest grade seal design and materials with bearing areas to ensure maximum service life.
  • Quality finish and corrosions resistant – Stainless steel components offer the maximum protection from premature corrosion.
  • Made in USA.

Reel Specifications and Dimensions

Weight 81 lbs
Series

80000

Hose I.D.

3/4"

Hose O.D.

1.188"

Hose Length

50'

Pressure

500 psi

Inlet

3/4" NPT(F)

Reel Outlet

3/4" NPT(F)

Hose Included

No

Max Temperature

210 °F

UPC

699567002635

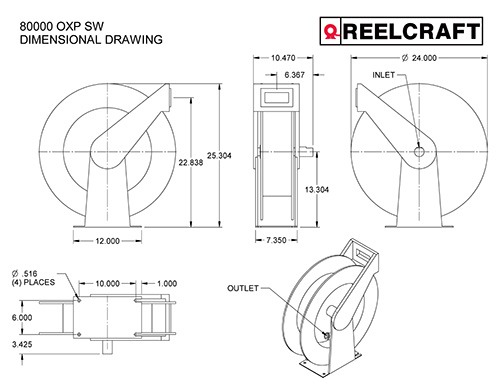

A 25.375"
B 24"
C 8.125"
D 10.5"
E 10"
F 6"

Fluid Path Materials

Internal Fluid Path Aluminum
Swivel Assembly Stainless Steel
Swivel Seal FKM

Parts Accessories Sold Separately

Bumper Stop Pivot Base Swing Bracket Inlet Hose Inlet Hose
3-hr1004-3-200x200.jpg 600801-200x200.jpg 600980-200x200.jpg s601034-3-200x200.jpg s601034-3-200x200.jpg
3-HS1004-3 - Adjustable Bumper Stop 600801 - 340° Pivot Base 600980 - Wall Mounted Universal Swing Bracket S601034-2 - 3/4 in. x 2 ft. Air/Water Inlet Hose S601034-3 - 3/4 in. x 3 ft. Air/Water Inlet Hose



Inlet Hose Inlet Hose Inlet Hose Swivel Assembly
s601027-5-200x200.jpg s601034-3-200x200.jpg s601034-3-200x200.jpg 602378-2-200x200.jpg
601034-4 - 3/4 in. x 4 ft. Air/Water Inlet Hose S601034-5 - 3/4 in. x 5 ft. Air/Water Inlet Hose S601034-7 - 3/4 in. x 7 ft. Air/Water Inlet Hose 602378-2 – Swivel Assembly

CAD Drawings




Downloads

Catalog Page
Service Manual

Warranty Information

Limited Warranty

For 2 years (1 year for Series LD, LG, LH cord reels, and reel covers; 6 months for hose and light bulbs) from the date of shipment, products manufactured and/or sold by Reelcraft Industries, Inc. (“Reelcraft”) shall, when properly installed, maintained and operated in accordance with the recommendation of Reelcraft and the manual of instructions, be free of defects in material and workmanship at the time of shipment. In no event shall Reelcraft be obligated under this warranty or otherwise in any way whatsoever for normal wear and tear or for any product which, in Reelcraft’s sole and exclusive determination, has been subjected to accident, abuse, misapplication, improper repair or alteration, improper installation or maintenance, excessive operating conditions or for defects or failures resulting from purchaser’s specifications or designs, or otherwise caused by purchaser, including without limitation defects or failures resulting from purchaser’s manufacture, distribution, sale or promotion of its own products. A failure to use circuit breakers on electric motors, filter, lubricators on air motors, and flexible inlet connections on live hose reels will void the express warranty stated above in this paragraph. EXCEPT FOR THE EXPRESS WARRANTY STATED ABOVE IN THIS PARAGRAPH, REELCRAFT MAKES NO OTHER WARRANTIES, INCLUDING, WITHOUT LIMITATION, ANY EXPRESS OR IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE OR ANY OTHER WARRANTIES, WHICH ARE HEREBY DISCLAIMED, WHETHER EXPRESS OR IMPLIED BY LAW, COURSE OF DEALING, COURSE OF PERFORMANCE, USAGE OF TRADE OR OTHERWISE.

Equipment, products, components and hoses not manufactured by Reelcraft are subject to the original manufacturer´s guarantee and warranties. Hoses carry a 6 month warranty as listed by the manufacturer. Reelcraft will assist in filing claims, but does not have any additional responsibility if original manufacturer denies warranty claim.

Product built to customer specifications and requirements or products incorporating variation from cataloged items are considered special and are not subject to cancellation or returnable for credit under any conditions.

Reelcraft reserves the right to modify or alter product, dimensions, design and construction to improve performance.

Please refer to Reelcraft’s Terms and Conditions of Sale

In the event of any conflict between this Warranty Information statement and the Terms and Conditions of Sale, the Terms and Conditions of Sale shall control.

Warranty Return Protocol

  1. Contact our customer service at 800-562-4791 and request the Return Goods Coordinator for the authorization number. Warranty claims will require the following information before a return authorization number can be issued:

    Product/model number
    Serial number
    Invoice number

    Additional information regarding a specific reason for return will be required in processing your request.
  2. If a replacement is required prior to Reelcraft receiving your return, the items being sent will be invoiced to your account until the warranty process is completed.
  3. Once given an RGA number all corresponding inquires, paperwork and boxes will require this number. Reelcraft reserves the right to refuse returns without an RGA number.
  4. Upon receipt of your warranty return and all the warranty conditions are met, a credit memo will be issued to your account and forwarded to you for your records. If there is a problem with your return a Customer Service representative will be in contact with you to discuss this further.
  5. If you desire, a warranty report is available to be forwarded or discussed with you regarding your specific return and our findings. Please contact our Return Goods Coordinator at 800-562-4791.
