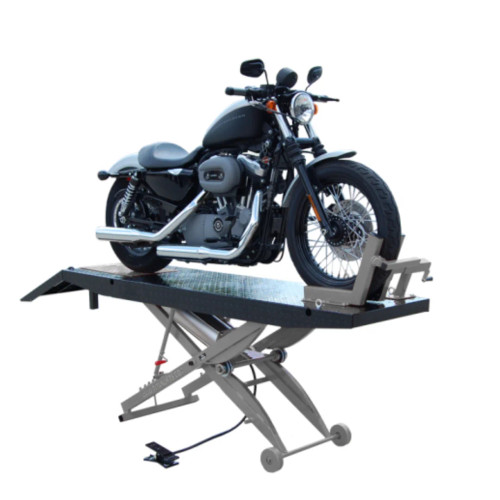

Titan Lifts SDML-1000D-XLT Motorcycle Lift
The Titan 1000D-XLT comes fully equipped with front tire vise, front extension and side extensions which gives it a large enough platform to work on everything from motorcycles and ATVs to jet skis and snowmobiles. This heavy-duty diamond plated lift can handle up to 1,000 pounds with its 7" air powered cylinder which raises the extra-large platform up to 33". Choose between two different powder coating color schemes of Black & Grey or Black & Orange.
Includes
- Front Wheel Vise
- Multi-Positional Front Table Extension
- Side Extensions
- Extended Ramp
- Stabilizer Bar
- Standard Rear Wheel Drop Out
- Roller Plate Drop Out
- Detachable Ramps
- Air Powered Lift Controls
- Two Wheeled Dolly
Locking Heights
| Lock Position 1 | 25.25" | Lock Position 4 | 30.25" |
|---|---|---|---|
| Lock Position 2 | 27.25" | Lock Position 5 | 31.75" |
| Lock Position 3 | 28.75" |
Dimensions
| Length w/Front Extension (Position 1) | 99" |
|---|---|
| Length w/Front Extension (Position 1) & Ramp | 120" |
| Length w/Front Extension (Position 2) | 94.5" |
| Length w/Front Extension (Position 2) & Ramp | 114.5" |
| Length w/Front Extension (Position 3) | 89.5" |
| Length w/Front Extension (Position 3) & Ramp | 109.5" |
Specifications
| Front Extension | 24.5" x 23.75" |
|---|---|
| Side Extensions (each) | 11.75" x 87.5" |
| Table Length | 87.5" - 99" |
| Table Width | 24" or 48" |
| Lowered Height | 8" |
| Rise Height | 33" |
| Lifting Capacity | 1,000 lb |
| Power Type | Air Only |
| Power Spec | 90 - 110 PSI |
Shipping
| Shipping Length | 91" |
|---|---|
| Shipping Width | 27" |
| Shipping Height | 23" |
| Shipping Weight | 750 lb |
Related Accessories (Sold Separately)

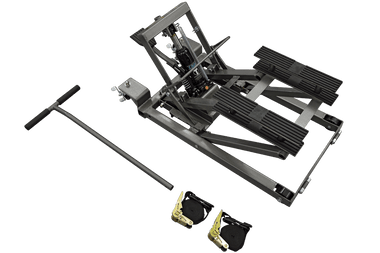

Titan 1,000 LB Motorcycle Mini Jack
Titan 1,500 Hydraulic Multi-Purpose Jack
Titan Deluxe Ratchet Straps - 1 Pair
Titan Motorcycle Roller Wheel Stand
Titan Bulldog Custom Profile Wheel Chock
Downloads
Manual Titan Standard Duty and Heavy Duty motorcycle lifts are backed by a standard 1 year replacement parts warranty from the date of purchase, to the original purchaser only. The 1 year replacement parts warranty covers power units, hydraulic cylinders, pneumatic cylinders, and all other assembly components such as, but not limited to: cables, caster wheels, valves, switches, wheel vises etc. This does not cover normal wear items such as but not limited to rubber wheel vise pads.
Titan Bulldog Moto Cradle Wheel Chock is warrantied for replacement parts, only to the original purchaser, for a period of 2 years from the date of purchase.
Titan shop equipment products and accessories are warrantied for replacement parts only to the original purchaser for a period of 90 days from the date of purchase. This 90 day replacement parts warranty covers products such as but not limited to: EZ mover jacks, Mini Jacks, tie down products, shop and Bulldog Moto Cradle Wheel Chock accessories, dollies, stands, Light Duty Motorcycle Lifts, etc.
For all warranty considerations, Titan Marketing, LLC will supply replacement parts only during the warranty period. The original purchaser is responsible for all shipping, handling, and any labor charges incurred. All defective parts must be returned to Titan for inspection and examination. Any parts that are found to be defective will be replaced or repaired to proper working order. Other items not listed above may be considered general wear parts and therefore, will not be covered under warranty. These warranties do not extend to defects caused by ordinary wear, abuse, misuse, shipping damage, improper installation, voltage or lack of required maintenance. Titan Marketing, LLC is not to be held responsible for any failure that results from an accident, purchaser/operator abuse, neglect, or failure to operate products in accordance with instructions provided in the owner’s manual(s) supplied. Damage caused by rain, excessive humidity, corrosive environments or other contaminants are not covered under warranty. THESE WARRANTIES DO NOT EXTEND TO ANY COSMETIC DEFECT NOT INTERFERING WITH EQUIPMENT FUNCTIONALITY OR ANY INCIDENTAL, INDIRECT, OR CONSEQUENTIAL LOSS, DAMAGE, OR EXPENSE THAT MAY RESULT FROM ANY DEFECT, FAILURE OR MALFUNCTION OF A TITAN MARKETING LLC PRODUCT OR THE BREACH OR DELAY IN PERFORMANCE OF THE WARRANTY.
