Katool KT-X85 8000 lbs. Electric Lock Release Scissor Lift (110v or 220v)
Features
- 8.000 lbs (3,500 KG) lifting capacity.
- CE Approved and Certified. It has adopted the 115% dynamic loading capacity standard and was 150% static loading capacity tested.
- Mobile or fixed mount design.
- Starting-up system design.
- Electric safety release.
- 24V safe control system.
- Height limit switch.
- Composite rubber lifting blocks included.
- Comes with self-lubricated bushing and bearing.
- Drive up ramps lock design as platform extension for long vehicles.
- Top level hydraulic system and aluminum motor with fan on top to avoid overheating caused by long time working with 110 (220V)V/ 60HZ/ 1PH.
Specifications

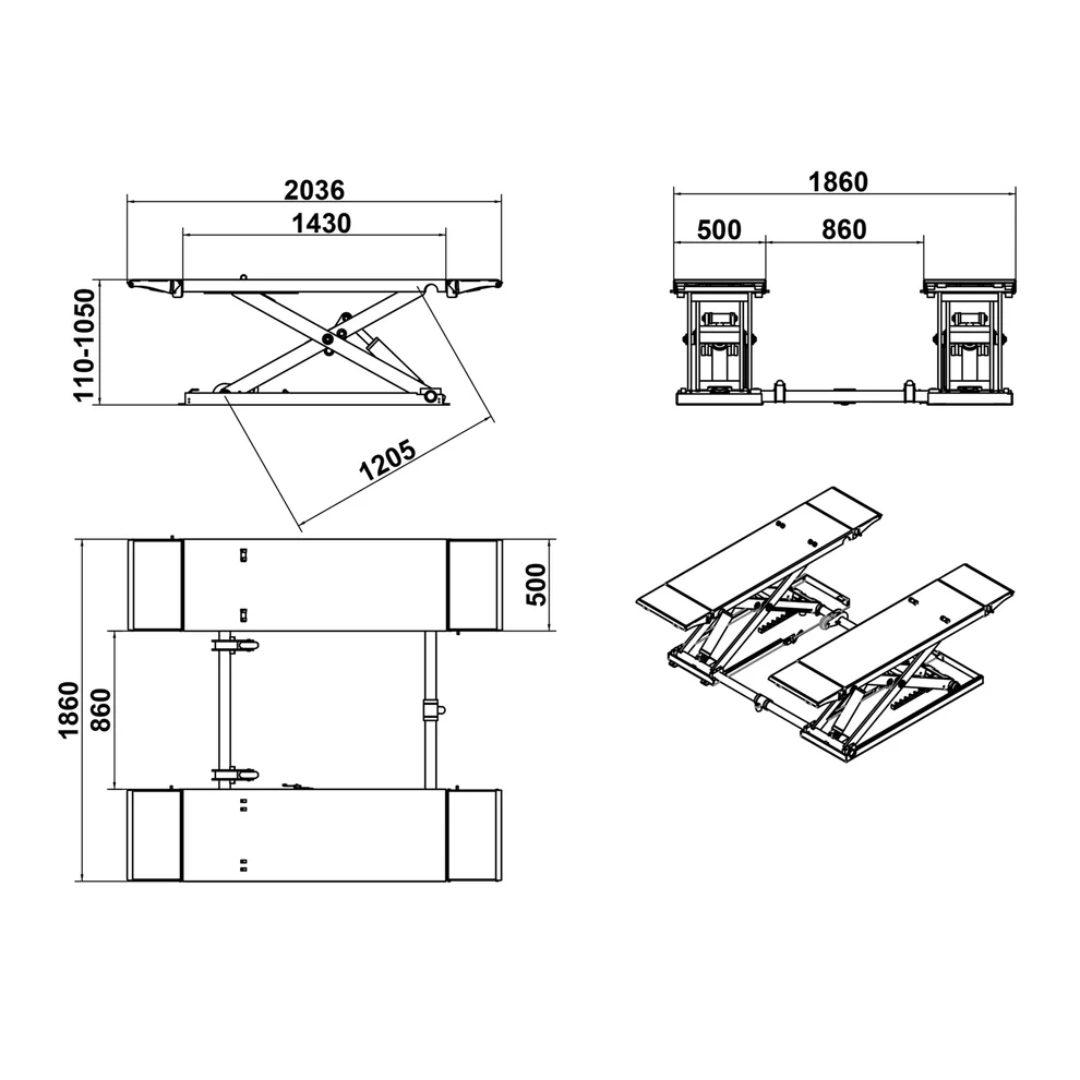

| Lifting Capacity | 8,000 lbs./ 3,500 KG |
| Max. Lifting Height | 40.15" / 1020 mm |
| Min. Height | 4.25" / 110 mm |
| Platform Length | 57" / 1450 mm ~ 80" / 2036 mm |
| Length Overall | 80" / 2036 mm |
| Platform Width | 19.7" / 500 mm |
| Width Overall | 73.22" / 1860 mm |
| Motor | 110 (220)VAC/60HZ/1PH |
| Net Weight | 1,213 lbs / 550 KG |
Warranty Policy
We offer a limited one-year (12 months) warranty on all parts and against all product defects, free of charge to our customers, on all equipment.
A 2-year extended warranty plan may be purchased for any piece of Katool or M&E automotive equipment (Contact us for more info)
* Including but not limited to: Cylinders, power units, motors, displays, electronics, etc...
Vehicle lifts will include an additional three-year (36 months) warranty on all lift structural components only.
Warranty claim for all products must fall within above period in order to qualify for limited warranty. Warranty is non-transferable, must have original order number, and purchased from our company or a registered vendor. Replacement Parts will be provided at no cost to the customer and will include free shipping.
*All warranty claims submitted to KATOOL are subject to approval by the warranty/service department and may be approved or denied at the full discretion of these departments. Photos and/or videos of original defects may be requested. Customers should not disassemble any piece of equipment before proof of original problem/issue has been determined. Any equipment outside of the policy will not be covered and buyer will be responsible for purchasing replacement parts at full cost and shipping charges will apply. Labor is not included in warranty.
