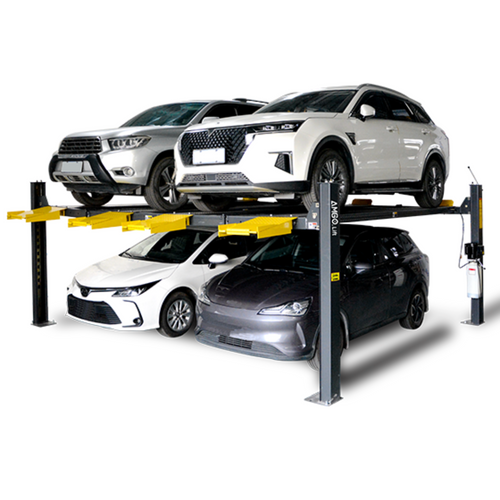

Katool KT-4H110 11000 lbs 4 Post Parking Lift
*Rolling jacks, casters, and ramps can be purchased separately but are not included*
Features
- 11,000 lbs lifting capacity.
- CE Approved and Certified. It has adopted the 115% dynamic loading capacity standard and was 150% static loading capacity tested.
- Single Point Manual Safety Lock Release
- Four mechanical locking devices, a secondary lock system acts as a slack-cable device to engage in the unlikely event of cable failure.
- Power side column can be installed at both sides, front or rear.
- Non-skid coated platforms and adjustable safety lock ladders.
- High-quality hydraulic system with 110V/60HZ/1PH.
Specifications
| Lifting Capacity | 11,000 lbs. / 4,990 KG |
| Max. Lifting Height | 84.25" / 2140 mm |
| Lifting Time | 83s Up / 40s Down |
| Height of Posts | 94.88" / 2410 mm |
| Width Overall | 126" / 3200 mm |
| Length Overall | 229.73" / 5835 mm (with Ramps) |
| Inside Columns | 112.81" / 2865 mm |
| Min. Runway Height | 6.2" / 157 mm |
| Motor | 110 VAC / 60 HZ/1 PH |
| Net Weight | 2116 lbs / 960 KG |
*Note: Concrete thickness must be at least 3.93” (100 MM) with a 3000 PSI rating. Failure to install this lift on the proper concrete could result in serious injury or death! It is the customer’s responsibility to verify concrete thickness and strength before purchase and installation.
Warranty Policy
We offer a limited one-year (12 months) warranty on all parts and against all product defects, free of charge to our customers, on all equipment.
A 2-year extended warranty plan may be purchased for any piece of Katool or M&E automotive equipment (Contact us for more info)
* Including but not limited to: Cylinders, power units, motors, displays, electronics, etc...
Vehicle lifts will include an additional three-year (36 months) warranty on all lift structural components only.
Warranty claim for all products must fall within above period in order to qualify for limited warranty. Warranty is non-transferable, must have original order number, and purchased from our company or a registered vendor. Replacement Parts will be provided at no cost to the customer and will include free shipping.
*All warranty claims submitted to KATOOL are subject to approval by the warranty/service department and may be approved or denied at the full discretion of these departments. Photos and/or videos of original defects may be requested. Customers should not disassemble any piece of equipment before proof of original problem/issue has been determined. Any equipment outside of the policy will not be covered and buyer will be responsible for purchasing replacement parts at full cost and shipping charges will apply. Labor is not included in warranty.
