JMC Equipment 2P9OH 2-Post Clear Floor Lift

JMC Equipment 2P9OH 2-Post Clear Floor Lift

Features

• Screw type lifting pads with 50 mm Dia adaptors for standard configuration.
• Arm lock is equipped with precise gears and self-release design which is reliable and stable.
• Equipped with 2-stage arms.
• Single side release.
• Sliding adaptors as standard configuration, good for various vehicles.
• Maintenance window for easy check and maintenance of carriage lock.
• Professional- class hydraulic cylinder and pump are supplied by USA United Hydraulics company.
• Stiffened low profile floor plate with slots inside for fixing and separating cables and oil hoses.
• Ultra low min height for easy accessing to vehicles.
• Equipped direct drive (inversion) cylinder.

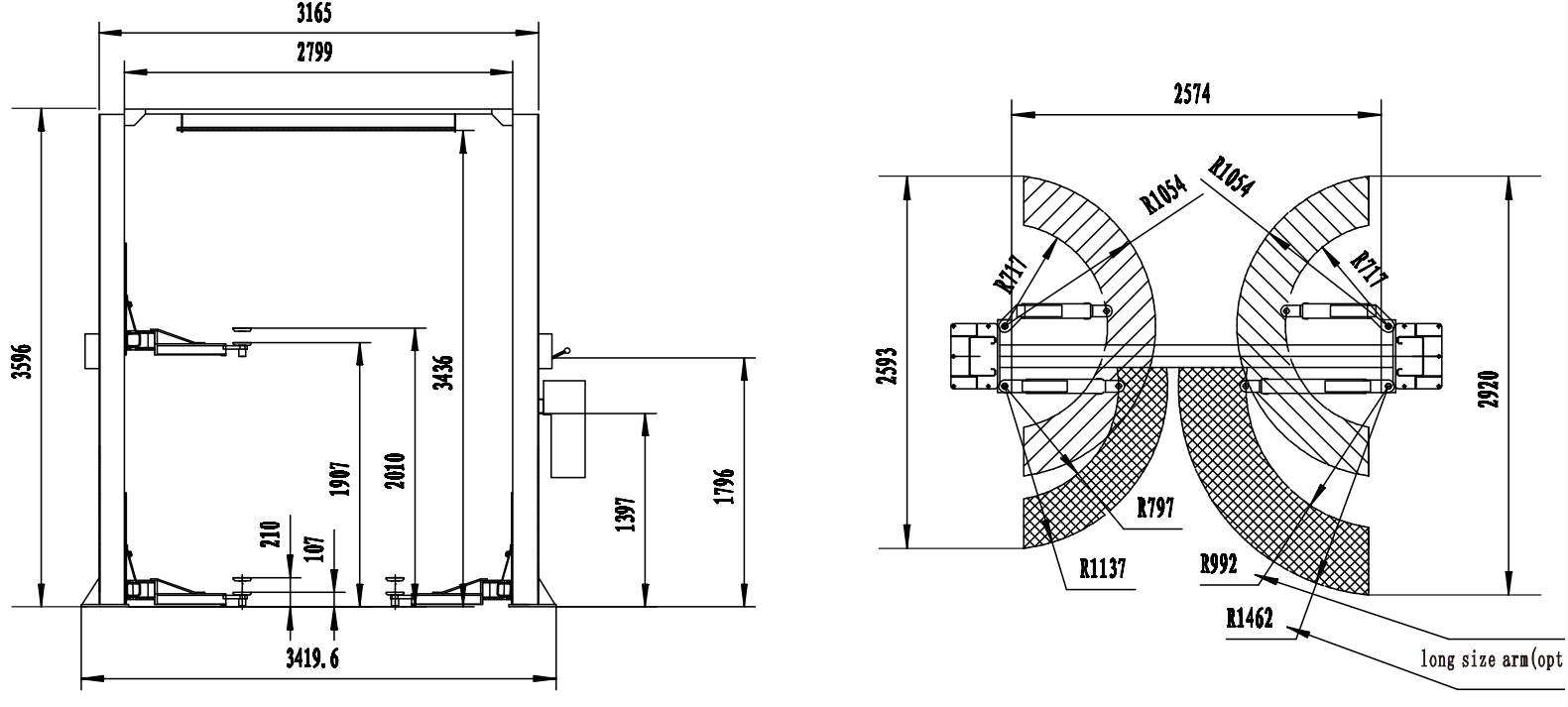

Specifications

c

Model  2P9OH  Lifting Height  79.13 in (2010 mm)  Overall Height  141.57 in (3596 mm)  Overall Width  134.62 in (3419.6 mm)  Arm Size  28.22 - 41.49 in ( 717-1054 mm)  Arm Size  31.37 – 44.76 in (797 – 1137 mm)  Pad Height  4.21 in (107mm)  Width Between  Posts  110.19 in (2799 mm)  Lifting Capacity  4.0 Ton
