Stratus SAE-C10P Pro Asymmetric & Symmetric Convertible Clear Floor Direct Drive 10,000 lbs Capacity Single (1) Point Manual Release Lift
Limited Access Zones
Features

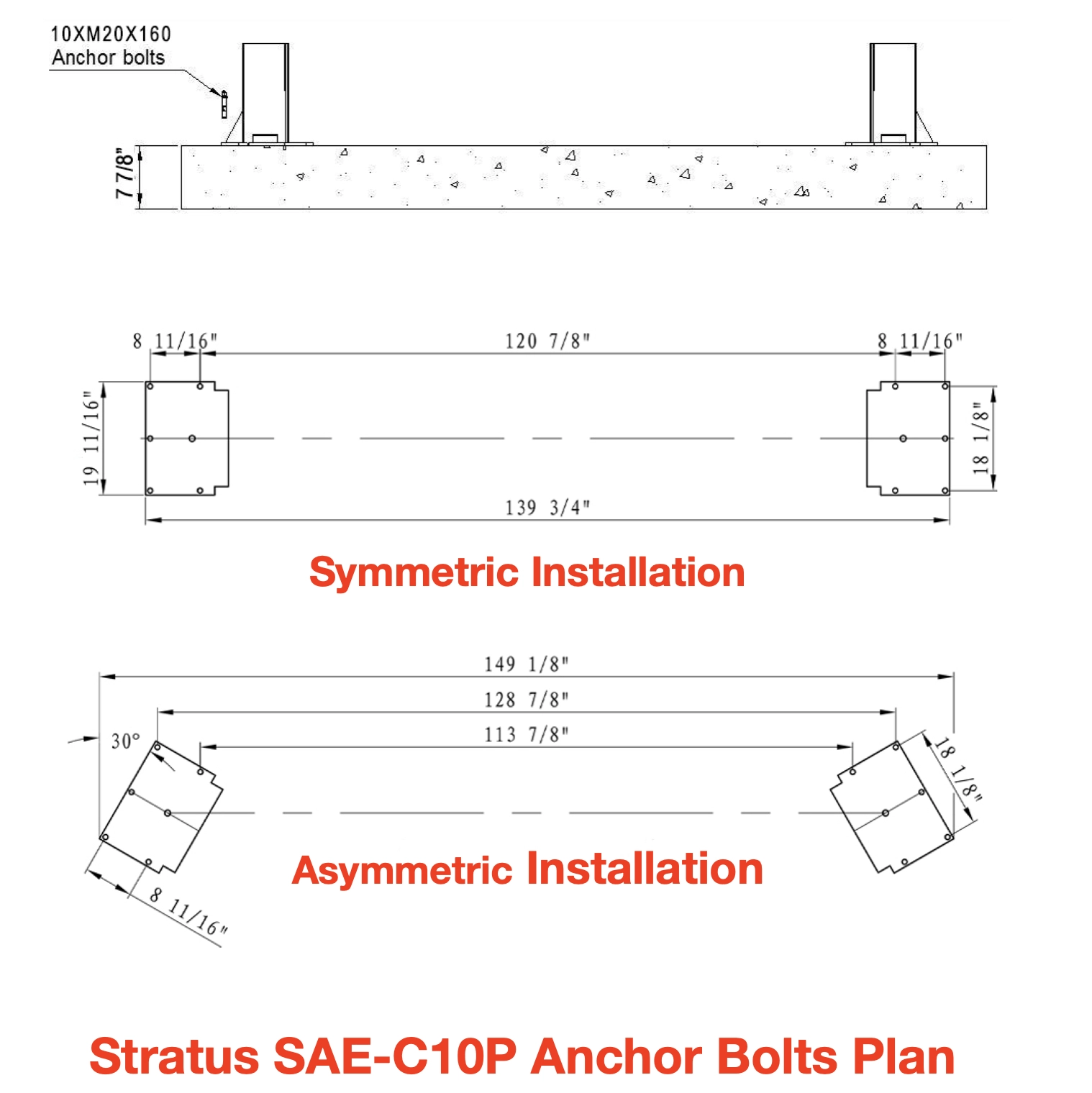

- Installation methods: Symmetric & Asymmetric.
- Overhead / Clear floor design.
- Single point manual release.
- Direct Drive.
- 2 Top limiter switch.
- Proofed by dynamic test with 115% of rated capacity and static test with 150% rated capacity.
- Powder coating finish: Granite Gray (RAL 7026) + Rein orange (RAL 2004).

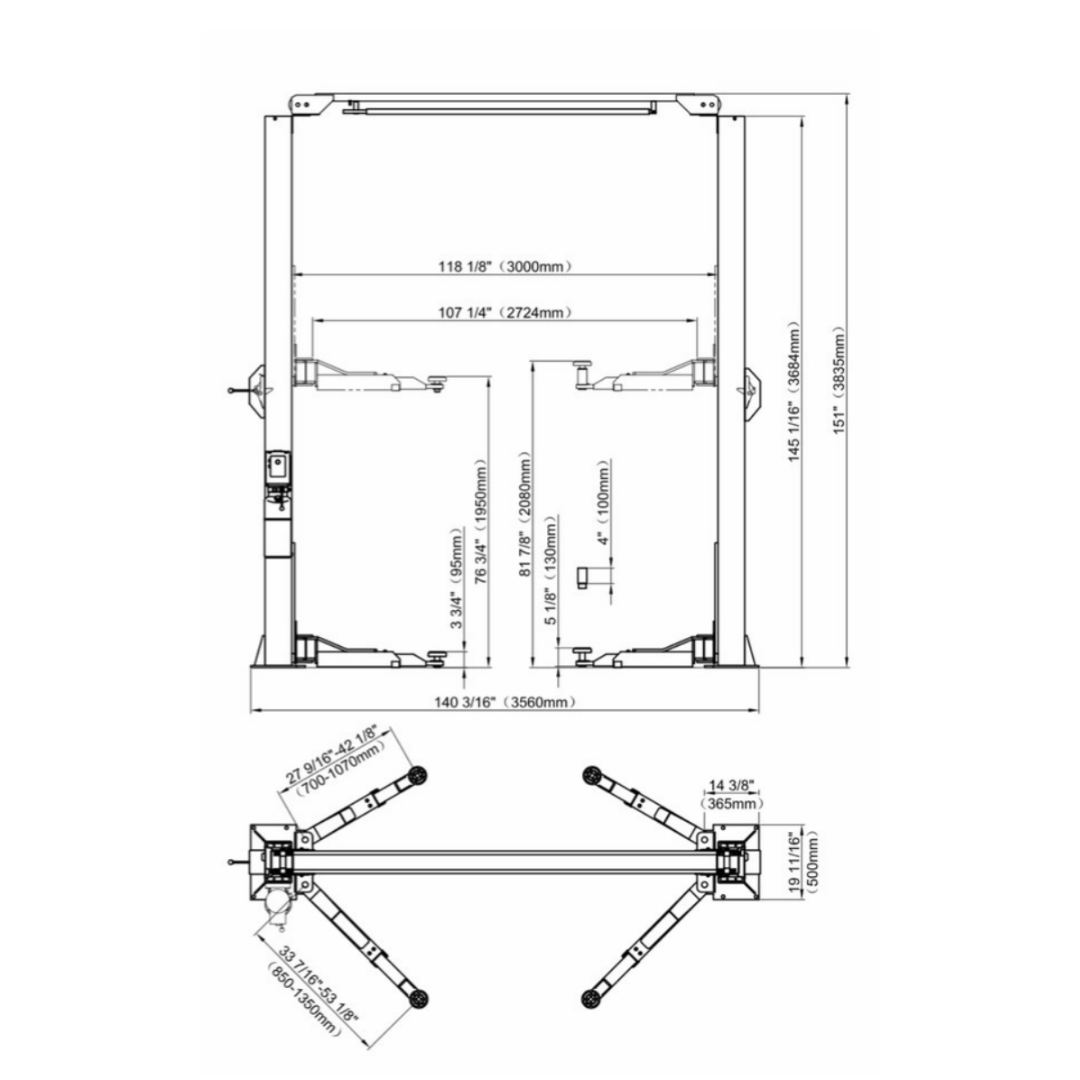

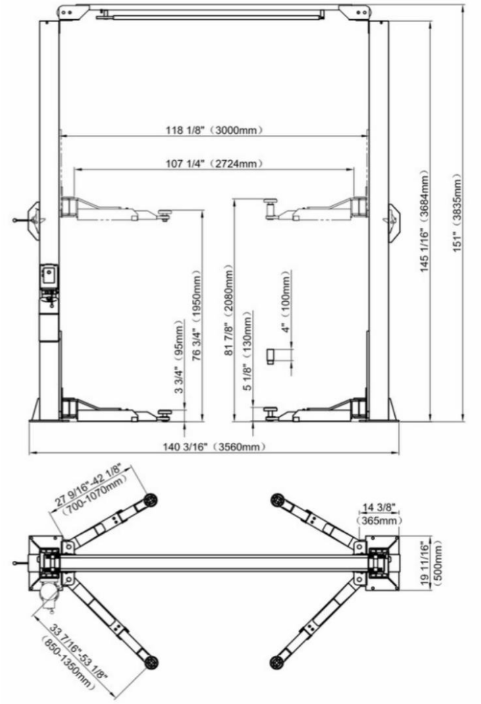

Technical Specification - Symmetrical
| Capacity | 10,000 LBS |
| Rise | |
| Max Lifting Height with Adaptors | 81 7/8” (2080 MM) |
| Min Lifting Height with Adaptors | 5 1/8” (130 MM) |
| Max Lifting without Adaptors | 76 3/4” (1950 MM) |
| Min Lifting without Adaptors | 3 3/4” (95 MM) |
| Rise Time | ~50SEC |
| Outside Dimensions | |
| Overall Height | 151” (3835 MM) |
| Overall Width | 19 11/16” (500 MM) |
| Overall Length | 140 3/16” (3560 MM) |
| Inside Dimensions | |
| Inside Columns | 118 1/8” (3000 MM) |
| Drive Thru | 107 1/4” (2724 MM) |
| Arms | |
| Front Arm Reach Max | 53 1/8” (1350 MM) |
| Front Arm Reach Min | 33 7/16” (850 MM) |
| Rear Arm Reach Max | 42 1/8” (1070 MM) |
| Rear Arm Reach Min | 27 9/16” (700 MM) |
| Power Unit | |
| Motor | 3 HP, 220V, 60 HZ, 1ph |
| Oil | AW32 or AW46 |
| Breaker | 30A |
| Shipping | |
| Weight | 1,455 LBS |
| Dimension | 116” L * 26” W * 36” H |
| Concrete | |
| Requirements | 6” – 3000 PSI |

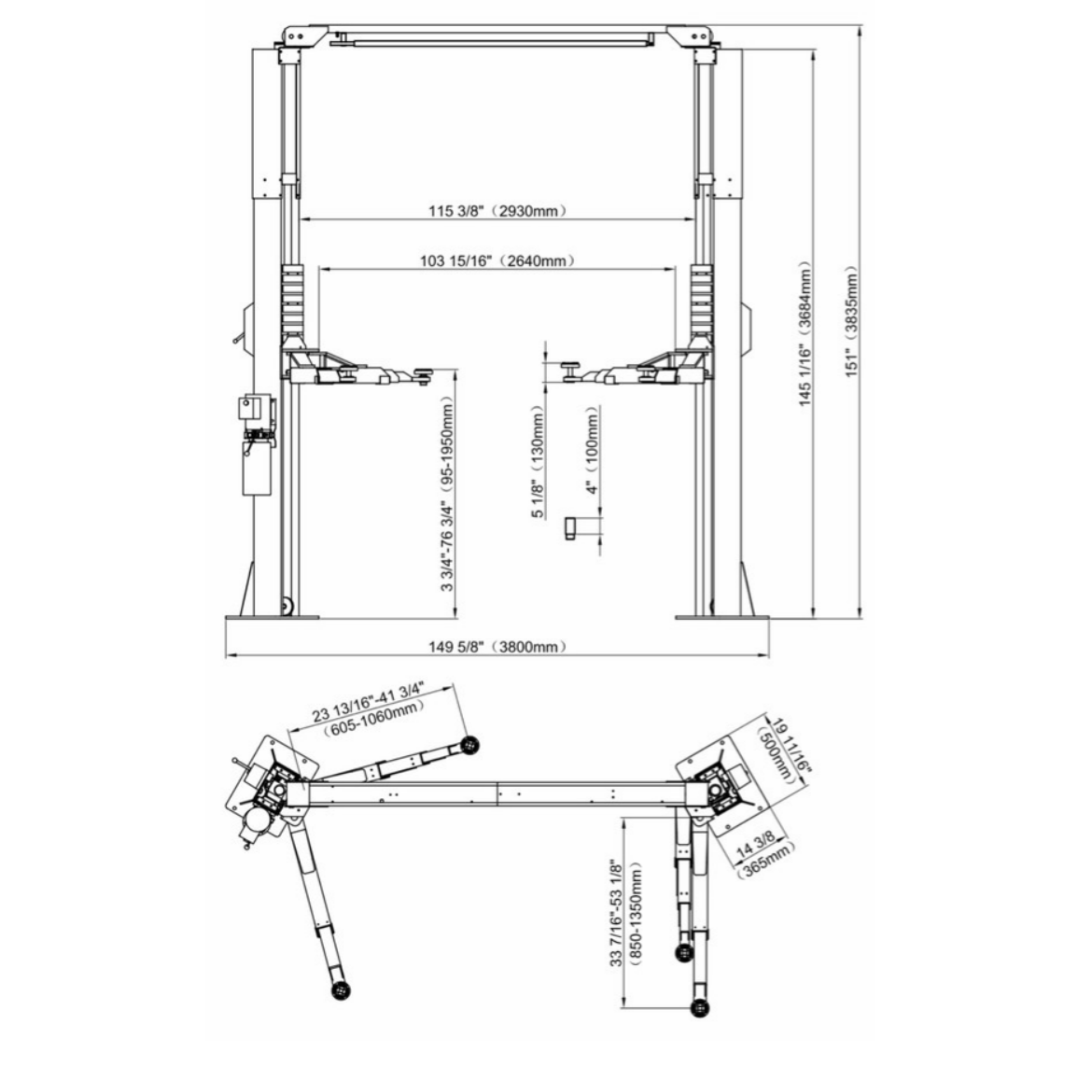

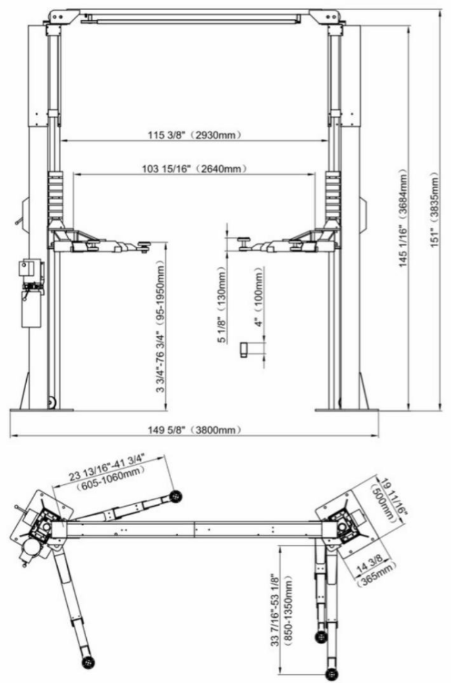

Technical Specification - Asymmetrical
| Capacity | 10,000 LBS |
| Rise | |
| Max Lifting Height with Adaptors | 82 11/16” (2100 MM) |
| Min Lifting Height with Adaptors | 3 15/16” (100 MM) |
| Max Lifting without Adaptors | 76 3/4” (1950 MM) |
| Min Lifting without Adaptors | 3 3/4” (95 MM) |
| Rise Time | ~50SEC |
| Outside Dimensions | |
| Overall Height | 151” (3835 MM) |
| Overall Width | 19 11/16” (500 MM) |
| Overall Length | 149 5/8” (3800 MM) |
| Inside Dimensions | |
| Inside Columns | 115 3/8” (2930 MM) |
| Drive Thru | 103 15/16” (2640 MM) |
| Arms | |
| Front Arm Reach Max | 53 1/8” (1350 MM) |
| Front Arm Reach Min | 33 7/16” (850 MM) |
| Rear Arm Reach Max | 41 3/4” (1060 MM) |
| Rear Arm Reach Min | 23 13/16” (605 MM) |
| Power Unit | |
| Motor | 3 HP, 220V, 60 HZ, 1ph |
| Oil | AW32 or AW46 |
| Breaker | 30A |
| Shipping | |
| Weight | 1,455 LBS |
| Dimension | 116” L * 26” W * 36” H |
| Concrete | |
| Requirements | 6” – 3000 PSI |
*Important Notes
1. A $250 surcharge apply to shipping in the following states: OR, WA, ID, MT, ND, SD, ME.
2. The buyer is always responsible for unloading the product from the truck, a forklift or similar equipment is required for unloading.
3. Discounts provided for pickups in College Station, Texas Warehouse.
Downloads
Warranty Information
- 5 years lifting structure, 3 years hydraulic, and 2 years electrical.
- Note: Parts only and labor costs for someone to install the replacement part are NOT covered. The hydraulic cylinders come with a 30-day full warranty and after 30 days we will provide a seal kit.
