Stratus SAE-414A 4 Post 14,000 lbs Capacity Pneumatic Safety Lock Release Alignment Lift
Limited Access Zones
Features
- Pneumatic safety lock release alignment lift.
- Max lifting height limiter switch to ensure the cylinders work within the stroke.
- Dual safety device design: Second safety device will be automatically locked while primary safety locks are out of operation.
- Optional rolling bridge jack. (Sold Separately).
- Optional turn table plate. (Sold Separately).
- Proofed by dynamic test with 115% of rated capacity and static test with 150% rated capacity.
- Powder coating finish: Granite Grey (RAL 7026) + Reinorange (RAL 2004).

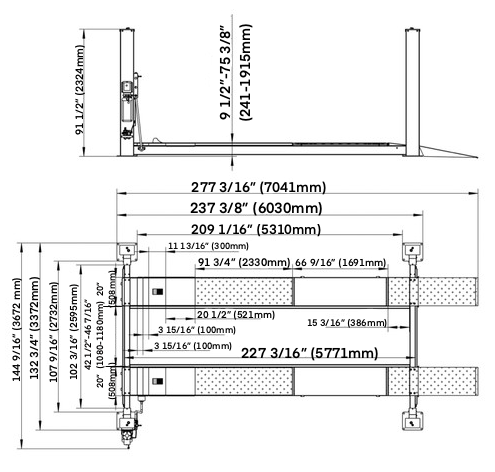

Technical Specification
| Capacity | 14,000 LBS |
| Rise | |
| Min lifting height | 9 1/2” (241 MM) |
| Max lifting height | 75 3/8” (1915 MM) |
| Lifting Time | ~50 SEC |
| Clearance Height | 65 7/8” (1674 MM) |
| Outside Dimensions | |
| Overall Height | 91 ½” (2324 MM) |
| Overall Width | 144 9/16” (3672 MM) |
| Overall Length w/ ramps | 277 3/16” (7040 MM) |
| Overall Length w/o ramps | 237 3/8” (6030 MM) |
| Inside Dimensions | |
| Width columns | 107 9/16” (2732 MM) |
| Drive Thru | 82 1/2” – 86 7/16” (2096 MM – 2196 MM) |
| Runways | |
| Runway width | 20” (508 MM) |
| Runway Length | 277 3/16” (5770 MM) |
| Between Runways | 42 1/2” – 46 7/16” (1080 MM – 1180 MM) |
| Power Unit | |
| Motor | 4 HP, 220V, 60 HZ, 1ph |
| Oil | AW32 or AW46 |
| Breaker | 30A |
| Shipping | |
| Weight | 3,097 LBS |
| Dimension | 236” L * 23” W * 36” H |
*Important Notes
1. A $250 surcharge apply to shipping in the following states: OR, WA, ID, MT, ND, SD, ME.
2. The buyer is always responsible for unloading the product from the truck, a forklift or similar equipment is required for unloading.
3. Discounts provided for pickups in College Station, Texas Warehouse.
Downloads
Warranty Information
- 5 years lifting structure, 3 years hydraulic, and 2 years electrical.
- Note: Parts only and labor costs for someone to install the replacement part are NOT covered. The hydraulic cylinders come with a 30-day full warranty and after 30 days we will provide a seal kit.
