Titan Lifts SDML-1000D-BG-XLT 1000 lb. 1000 lb. Diamond Plate Air Motorcycle Lift with accessories

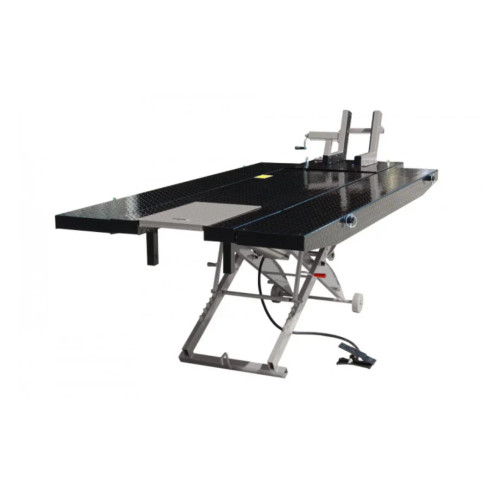

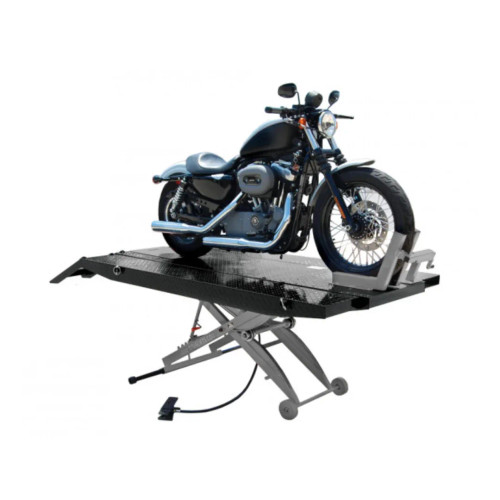

The Titan 1000D-XLT comes fully equipped with front tire vise, front extension and side extensions which gives it a large enough platform to work on everything from motorcycles and ATVs to jet skis and snowmobiles. This heavy-duty diamond plated lift can handle up to 1,000 pounds with its 7" air powered cylinder which raises the extra-large platform up to 33". Choose between two different powder coating color schemes of Black & Grey or Black & Orange.
Includes
- Front Wheel Vise
- Multi-Positional Front Table Extension
- Side Extensions
- Extended Ramp
- Stabilizer Bar
- Standard Rear Wheel Drop Out
- Roller Plate Drop Out
- Detachable Ramps
- Air Powered Lift Controls
- Two Wheeled Dolly
Locking Heights
| Lock Position 1 |
25.25" |
Lock Position 4 |
30.25" |
|---|
| Lock Position 2 |
27.25" |
Lock Position 5 |
31.75" |
|---|
| Lock Position 3 |
28.75" |
|
|
|---|
Dimensions
| Length w/Front Extension (Position 1) |
99" |
|---|
| Length w/Front Extension (Position 1) & Ramp |
120" |
|---|
| Length w/Front Extension (Position 2) |
94.5" |
|---|
| Length w/Front Extension (Position 2) & Ramp |
114.5" |
|---|
| Length w/Front Extension (Position 3) |
89.5" |
|---|
| Length w/Front Extension (Position 3) & Ramp |
109.5" |
|---|
Specifications
| Front Extension |
24.5" x 23.75" |
|---|
| Side Extensions (each) |
11.75" x 87.5" |
|---|
| Table Length |
87.5" - 99" |
|---|
| Table Width |
24" or 48" |
|---|
| Lowered Height |
8" |
|---|
| Rise Height |
33" |
|---|
| Lifting Capacity |
1,000 lb |
|---|
| Power Type |
Air Only |
|---|
| Power Spec |
90 - 110 PSI |
|---|
Shipping
| Shipping Length |
91" |
|---|
| Shipping Width |
27" |
|---|
| Shipping Height |
23" |
|---|
| Shipping Weight |
750 lb |
|---|
Downloads
Manual
Flyer
