Stratus SAE-C12X Overhead Clear Floor Direct Drive 12,000 lbs Capacity Single (1) Point Manual Release Lift
Features
- Extra wide drive through: 115 11/16”.
- Overhead / Clear floor design.
- Single point manual release.
- Direct Drive.
- 2 Top limiter switch.
- Proofed by dynamic test with 115% of rated capacity and static test with 150% rated capacity.
- Powder coating finish: Granite Gray (RAL 7026) + Rein orange (RAL 2004).

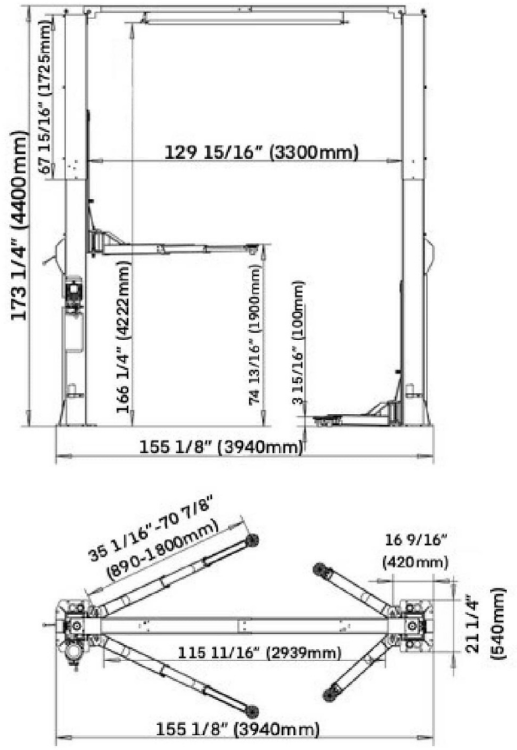

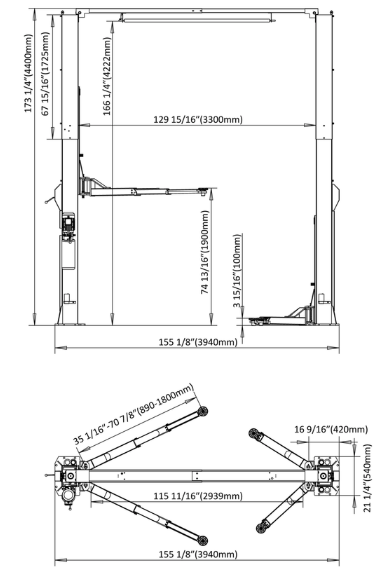

Technical Specification
| Model |
C12X |
| Capacity |
12,000 LBS |
| Max Lifting Height with Adaptors |
78 13/16" (2001 MM) |
| Min Lifting Height with Adaptors |
5 1/8" (130 MM) |
| Max Lifting without Adaptors |
74 13/16" (1900 MM) |
| Min Lifting without Adaptors |
3 15/16" (100 MM) |
| Rise Time |
-60 SEC |
| Overall Height |
173 1/4" (4400 MM) |
| Overall Width |
21 1/4" (540 MM) |
| Overall Length |
155 1/8" (3940 MM) |
| Inside Columns |
129 15/16" (3300 MM) |
| Drive Thru |
115 11/16" (2939 MM) |
| Front Arm Reach Max |
70 7/8" (1800 MM) |
| Front Arm Reach Min |
35 1/16" (890 MM) |
| Rear Arm Reach Max |
70 7/8" (1800 MM) |
| Rear Arm Reach Min |
35 1/16" (890 MM |
| Motor |
4 HP, 220V, 60 HZ, 1ph |
| Oil |
AW32 or AW46 |
| Breaker |
30A |
| Weight |
173 1/4" (4400 MM) |
| Dimension |
21 1/4" (540 MM) |
| Requirements |
6-3000 PSI |
| Shipping Weight |
2753 LBS |
| Shipping Size |
112" x 44" x 32" |
|
|
 |
Optional Accessories (Sold Separately)
*Important Notes
1. A $250 surcharge apply to shipping in the following states: OR, WA, ID, MT, ND, SD, ME.
2. The buyer is always responsible for unloading the product from the truck, a forklift or similar equipment is required for unloading.
3. Discounts provided for pickups in College Station, Texas Warehouse.
