BendPak PCL-18B-2 36,000 Lbs Mobile Lift High Voltage (Set of 2)
36,000-lb. Capacity / Mobile Lift System / 460/380V, 50/60HZ/ 3 Ph / Set of 2

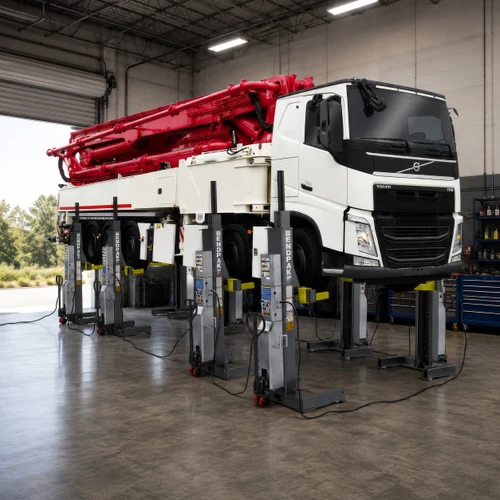

This PCL-18B mobile column lift system comes in a set of 2. When combined, the system lifts up to 36,000 lbs. A set of 2 is the perfect way to expand your lifting capabilities on vehicles with three or four axles. Sets of 4, 6 and 8 are available.
With a pair (2) of mobile column lifts, you can add to your existing fleet and expand your lifting capabilities to include larger semi-trucks and heavy-duty vehicles. A minimum of 4 mobile column lifts must be used to lift a vehicle, and heavier vehicles require 6 or 8. This 2-set is a great way to gradually upgrade into the 6 or 8-lift range, offering up to 144,000 lbs. with a full set.
Do not attempt to lift half of a vehicle (the front or back only) with only 2 mobile lifts. Vehicles must be raised on an even plane at all times.
Features
- 18,000-lb. individual column capacity / 108,000-lb. maximum system capacity.
- Meets or exceeds the standards prescribed by ANSI/ALI ALCTV-2011.
- Two, four, or six column configurations can accommodate heavy duty trucks and light duty passenger vehicles.
- optional voltages available upon request.
- SINGLE, PAIR or TEAM operation.
- For a standard four-column set, just three 30' cables are used leaving the front or back of the lift clear of cable obstructions.
- Simple operation, long service life and minimum maintenance.
- Intuitive controls allow the lift to be fully programmed and controlled from any column.
- Control systems feature 24-volt safety circuitry.
- The PLC and main system components are standard off-the-shelf brands rather than proprietary printed circuit boards or controls, which can be very expensive to service or replace.
- Smart electronics feature self-diagnostics and self-calibration functions.
- Sealed and enclosed linear potentiometers feature precision potentiometric output and high-frequency response for precise synchronization and communication of all columns throughout all operation cycles for precise, level lifting.
- Variable height limit settings can be programmed for shops with low ceilings or when specific vehicle service requirements necessitate specific rise heights.
- Two-speed lowering option – turtle or rabbit speed settings.
- Each column is equipped with a warning light and audible alarm for critical warning alerts.
- Emergency shut-off switches on each column quickly shut off power to the lift in the event an unsafe condition is detected by the operator.
- Separate key lock enclosure on each column.
- Electronics are multi-fuse protected.
- An enclosed electric-hydraulic power system that ensures quieter operation is better suited for sound-sensitive areas.
- Pallet-jack style steering wheels enable the columns to be lowered firmly on the floor vs. constantly loaded spring-type steering wheels that can cause columns to roll when unladen by the weight of a vehicle.
- Low-mounted power units and cylinders means a lower center of gravity, making the columns easier to move and less likely to topple vs. screw-drive systems with heavy overhead motors and drive systems.
- Extended forks accommodate wide tires and deep wheel configurations.
- Multi-width wheel forks with locking pins accommodate the widest range of wheels, eliminating the need for specialty wheel adapters.
- Tandem 8” diameter polyurethane covered steel wheels with sealed roller bearings easily roll over dirt and debris.
- Heavy-duty steel carriage rollers feature turned, ground and polished axle pins.
- Manual safety override valves on each column permit the lift to be lowered in the event of a power outage without the need for manual hand cranks.
- Durable forklift pockets provide simplistic handling when moving the lift columns from one facility to another.
- Inverted hydraulic cylinders feature an integrated safety valve to prevent accidental uncontrolled lowering in the event of oil pressure loss.
- Multiple, automatic, independent safety locks spaced every four inches ensure safe operation.
- Space-saving design, reduced column weight and a tight turning radius provides improved mobility.
- Use the lift to place vehicles on tall jack stands then use the columns to raise another vehicle in an adjoining bay.
- Durable powder coat finish
Specifications
| Lifting Capacity | 18,000 lbs. (8,165 kg) |
| A - Overall Height (RAISED) | 101” (2,565 mm) |
| B - Overall Height (LOWERED) | 146.5” (3,721 mm) |
| C - Max. Lifting Height | 71.5” (1,889 mm) |

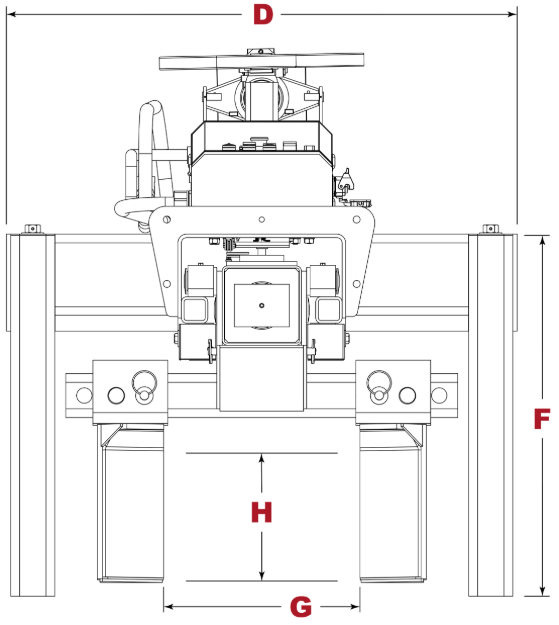

| D - Overall Depth | 48.75” (1,238 mm) |
| E - Overall Width | 45” (1,143 mm) |
| F - Chassis Length | 32.25” (819 mm) |
| G - Min. Lifting Fork Width | 9.5” (241 mm) |
| H - Max. Lifting Fork Width | 35” (889 mm) |
| I - Lifting Fork Length | 11.5” (292 mm) |
| Turning Circle | 40” (1,016 mm) |
| Column Weight | 1,450 lbs. (657 kg) |
| Lifting Speed | 85 sec |
| Shipping Weight per Column | 1,450 lbs. (657 kg) |
| Shipping Dimensions per Column | 106'' x 55'' x 41'' (2,696 mm x 1,397 mm x 1,041 mm) |
