The EVS300 is the latest in BendPak’s revolutionary Mobi-EVS line of full-rise battery powered mobile scissor lift tables and is perfectly suited for Electric Vehicle Service and EV Battery Pack replacement. With it, you’ll be able to safely handle critical vehicle components weighing up to 3,000 lbs. With a compact design, this space-saving lift table can be easily transported anywhere in the workplace, making the EVS3000 ideal for multi-bay facilities or workplaces with confined areas.

Features

• Zero-throw casters for extreme maneuverability.
• Adjustable screw jack.
• Stowable tow bar.
• Twin hydraulic cylinders.
• Tri-caster locking pin.
• DC Electric power system with onboard charging.
• Multi-point safety locks.
• Remote control operation.
• Full-length utility trays.
• Manual floor locks.
• Hydraulic fail-safe circuit.

Specifications

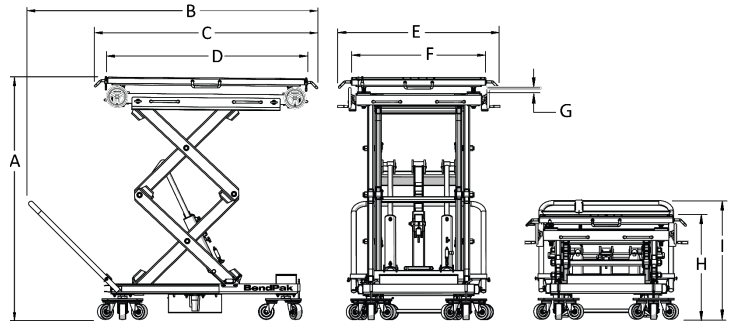

Model  EVS3000  Lifting Capacity  3,000 lbs. / 1,361 kg  Maximum Rise  77.75 in. / 1,972 mm  Overall length  91.25 in. / 2,318 mm  Top Deck length (with handles)  71.25 in. / 1,807 mm  Top Deck Length  63 in. / 1,600 mm  Overall Width (with handles)  53 in / 1,348 mm  Top Deck Width  42.75 in. / 1,088 mm  Screw Jack Max. Adjustment  1.5 in. / 38 mm  Minimum Deck Height  34.25 in. / 868 mm  Height of Steering Handle  39.25 in. / 997 mm  Motor  12VDC  Operating Pressure at Max Load  1250 psi  Battery Charger  Input: 120 VAC, 60 Hz. / Output: 12VDC, 15A  Battery Charge Time  10-12 Hours to full charge from ≈20%  Lifting Time  ≈18 seconds  Weight  1,918 lbs. / 870 kg

*Specifications subject to change without notice
