BendPak 20AP-192 20,000 Lbs Clearfloor 2-Post Lift (High Rise)

The top-of-the-line 20AP-192 delivers advanced technology, premium-grade materials, an innovative design, as well as a whopping 20,000 lb. lifting capacity. Unlike the regular 20AP, this lift offers an enhanced overall height of 193”, giving taller techs out there the room they need to get the job done as comfortably as possible.

Features

• Durable powder coat finish.
• Expandable top beam accommodates wide or narrow drive-through configuration.
• Double-telescoping screw pads offer increased versatility.
• Padded overhead safety shutoff bar.
• Single-point safety release.
• Drop-end arms provide a lower pad height.
• Dual hydraulic direct-drive cylinders.
• Electric / hydraulic HVLP power system.
• Self-lubricating dura-glide UHMW polyethylene bearing system.
• Safety locks in each column spaced every 3”.
• Automatic arm restraints withstand over 2000-pounds of side force.
• Heavy-duty 1/2” aircraft-quality equalizer cables.
• Oversized cable sheave diameter reduces cable fatigue.
• ALI Certified.

Specifications

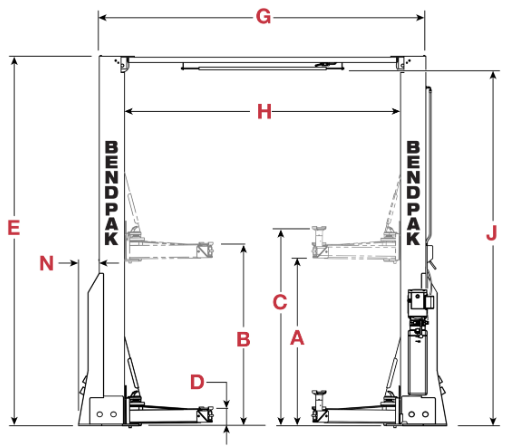

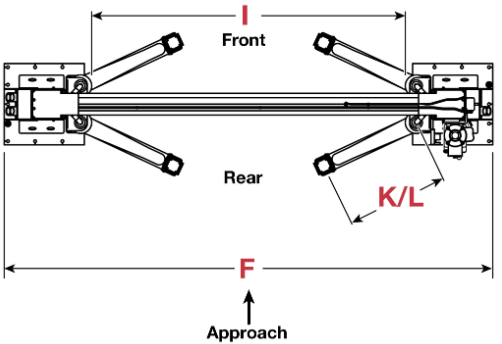

Model   20AP-192  Lifting Capacity  20,000 lbs. / 9,072 kg  A - Max. Rise (no Safety Lock engaged)  76.5 in. (1,943 mm)  B1 - Max. Lifting Height w/ Pad (Top Lock)  82.75 in. (2,103 mm)  B2 - Max. Lifting Height w/Pad (no Lock)  83.25 in. (2,114 mm)  C - Max. Lifting Height w/Adapters (Top Lock)  90.25 in. (2,292 mm)  D - Min. Height w/ Pad  8 in. (206 mm)  E - Overall Height  193 in. (4,904 mm)  F - Width Overall  168 in. (4,267 mm)  G - Outside Posts  149 in. (3,785 mm)  H - Inside Posts  126 in. (3,199 mm)  I - Drive-Thru Width  107.75 in. (2,742 mm)  J - Floor to Top Switch  186.5 in. (4,738 mm)  K - Lift Arm Reach (min. - max.)  35 in. to 62 in.  (893 mm to 1,575 mm)  L - Base Plate Width  28 in. (710 mm)  M - Post to Base Plate  9.5 in. (241 mm)  Time to Full Rise  ≈ 79 seconds  Operating Pressure at Maximum Load  2,647 psi  Max. load per Lift Arm  5,000 lbs. / 2,268 kg  Motor / Sound   220 VAC, 60 Hz, 1 Phase / <70 dB

*Specifications subject to change without notice

WARNING: Cancer and Reproductive Harm

Downloads

 Manual

 Brochure

**Bendpak charges sales tax in California**
***It is the buyer's responsibility to unload the freight at their location.
