BendPak 12APF 2 Post Car Lift 12,000 Lb. Capacity

BendPak 12APF 2 Post Car Lift 12,000 Lb. Capacity

The BendPak 12APF is a heavy-duty open-top two-post lift engineered for shops that need maximum vertical clearance and real lifting power in low-ceiling environments. With a full 12,000 pound capacity, an exclusive Bi-Metric arm design, an ultra-durable floorplate with concealed hydraulics, and BendPak’s fortified ASARS automatic arm restraint system, this lift is built for serious daily use. Whether you’re servicing commercial vans, lifted trucks, or standard passenger vehicles, the 12APF gives you the strength, safety, and simplicity your shop depends on.

Features

• 12,000 lb. lifting capacity.
• Open-Top Design.
• Shortened column for low-ceiling installations.
• Extended rise for over 6 ft. of under clearance.
• Exclusive Bi-Metric arm design for more versatile arm positioning.
• Automatic Swing Arm Restraint Sytem (ASARSTM).
• Single-piece columns.
• Single-point safety release.
• Steel Floorplate with Concealed Hydraulic Lines.
• Drop-end arms provide a lower pad height.
• Electric / hydraulic power system.
• Self-lubricating dura-glide polyethylene bearing system.
• Dual 3/8 in. equalizer cables with oversized cable sheaves.
• 15 Safety lock positions in each column spaced every 4 in.
• Built for Strength, Safety, and Simplicity.

Specifications

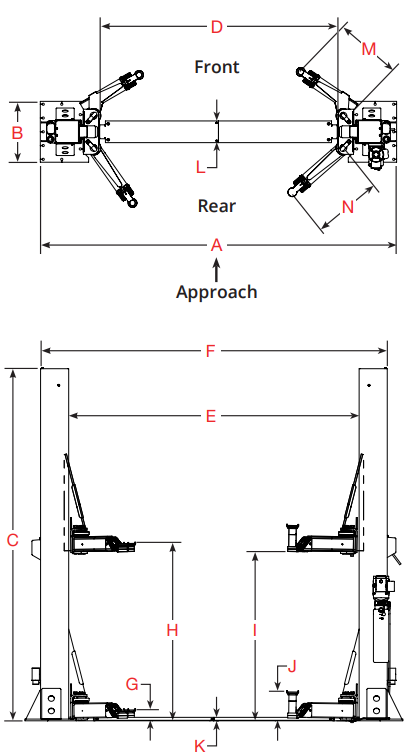

Lifting Capacity  12,000 lbs. (4,082 kg)  Maximum Capacity – Front Axle  6,000 lbs. (2,722 kg)  Maximum Capacity – Rear Axle  6,000 lbs. (2,722 kg)  Maximum Capacity per Lift Arm  3,000 lbs. (1,361 kg) A  Width Overall  155 in. (3,937 mm) B  Base Plate Width  26.5 in. (674 mm) C  Post Height  144.75 in. (3,676 mm) D  Drive-Thru  102.25 in. (2,599 mm) E  Inside Posts  119.125 in. (3,026 mm) F  Outside Posts  142.25 in. (3,612 mm) G  Min. Height w/Cradle Pad  4.5 in. (114 mm) H  Max. Lift Height w/Cradle Pad  73.5 in. (1,865 mm) I  Maximum Rise  70 in. (1,780 mm) J  Cradle Pad Height w/Adapters  11.75 in. (300 mm) K  Floor Plate Height  1.5 in. (36 mm) L  Floor Plate Width  9.5 in. (240 mm) M  Asymmetric Arm Reach (min. - max.  26 in. - 55.25 in. (660 - 1,404 mm)    Symmetric Arm Reach (min. - max.)  29.5 - 60 in. (745 - 1,525 mm)  Safety Lock Position  15 Positions spaced every 4 in. (99 mm)  Time to Full Rise  ≈68 Seconds  Operating Hydraulic Pressure Under Max. Load  2,170 ps  Standard Motor 208-240 VAC, 50/60 Hz, 1 Phase, Approx. 11 Amps

*Specifications subject to change without notice
