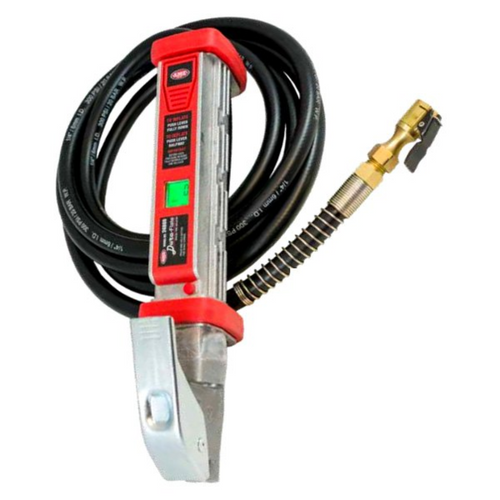

AME 24869 Dura-Flate Inflator, 3 in 1 Function
Features
- Designed to meet EC standards and constructed in die cast aluminum for lightweight ease of use.
- Multi scale standard calibration is 0 - 174 p.s.i., 0-1200 KPa, 0 - 12 Bar
- Wire sheathed hose eliminates kinking
- Ergonomically designed trigger with two dual action; inflate or deflate.
- Backlight illuminated digital display is to a guaranteed accuracy.
- Powered by 2x AAA batteries.
- Auto On/OFF to conserve battery life (Auto on when pressure is sensed. Auto off after 8 seconds).
- Supplied with official calibration certificate.
- Rubber grip on chuck.
Specifications
Part No. | 24869 |
Reader unit | Digital backlight display |
Chuck type | Hold on |
Chuck style | Dual angle |
Scale | 174 p.s.i., 1200 kPa., 12 Bar |
Inlet size | 1/4” NPT female |
Hose length | 19.7 in. (500 mm) |
Dimensions | 10.4 in. x 2 in. (265 L x 50 W mm) |
Weight | 2 lbs (.95 kg) |
Accuracy | ± 2 p.s.i. @ 25-75 p.s.i. |
Operation | Inflate, deflate, measure |
Supply pressure max. | 200 p.s.i. |
Advised application | Industrial, workshops, Automotive, Fleet Service |
Inflation flow | 500 L/min @ 188 p.s.i. |
Batteries | 80 hours (depending upon usage) |
