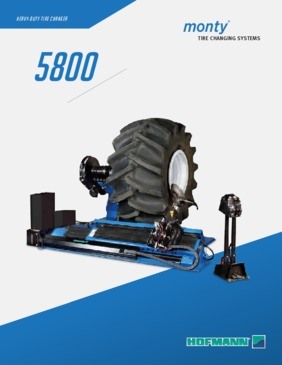

Hofmann Monty 5800WLTruck Tire Changer

Hofmann Monty 5800WL

Product Overview

Hofmann’s monty 5800 series heavy-duty tire changers are designed to mount/demount tires up to 95" in diameter. The monty 5800 series features a hydraulically-operated self-centering four jaw chuck with clamping jaws that can clamp from 14" to 58" either from the wheel’s inside or from the center bore. The chuck can be lowered as much as 13.78" from the carriage - great for handling wheels without tires!

Features:

  • Powerful hydraulic cylinders are used to operate the mounting tool and bead breaker, providing for 7,600 lbs. of bead-breaking power!
  • Handles a wide range of wheel and tire assemblies thanks to the adjustable mounting tool - adjust the length or angle to achieve optimal working positions!
  • Two-speed chcuk allows for flexibility and versatility.
The chuck can be lowered as much as 13.78" from the carriage - great for handling wheels without tires! The mounting tool is adjustable by 180° regardless of the arm’s position. The large clamping range of the monty 5800 series makes it capable of handling a wide variety of wheel and tire assemblies.
The chuck can be lowered as much as 13.78" from the carriage - great for handling wheels without tires! The mounting tool is adjustable by 180° regardless of the arm’s position. The large clamping range of the monty 5800 series makes it capable of handling a wide variety of wheel and tire assemblies.



  • Wireless control console allows the technician to choose the most optimal position for performing tire changes.
  • The mounting tool automatically positions itself on the other side of the wheel through a single button press.
  • Automatic shut-off of tire changer when not in use, saving energy and preserving the life of the hycraulic motor.
The tool support can be adjusted to three positions.   The special design with adjustable studs ensures long life of the chuck arm.
The tool support can be adjusted to three positions.   The special design with adjustable studs ensures long life of the chuck arm.

Specifications



Maximum Wheel Width 59"
Maximum Wheel Diameter 95"
Maximum Wheel Weight 4,409 lbs.
Wheel Clamping Range 14" - 58"
Bead Breaking Force 8,543 lbs.
Two-Speed Chuck 4/8 RPM
Hydraulic Motor HP
Chuck Motor HP
Work Area Dimensions (DxWxH) 116.5"x82.7"x78.74"
Shipping Weight 3,087 lbs.
Power Requirements 230V, 3Ph, 60HZ

 Accessories

Standard Accessories

Part NumberDescription
ST4002354 Bead Pushing Lever
EAA0247G02A Tire Lever
ST4004461 Long Tire Lever
EAA0329G10A Clamp for Steel Wheels

Optional Accessories

Part NumberDescription
EAA0347G43A Clamping Jaws for Alloy Wheels (4 each)
ST4007611 OTR Extension for Split-Ring Wheels
ST4022287 Mounting Roll for Tubeless Tires
ST402852 Clamp for Alloy Wheels
