AMGO SL6

AMGO’s newly designed single post lift is the perfect choice for when you must quickly lift a vehicle in limited space.The SL-6 is one of the least space-consuming, permanently affixed, lifts in the world and can be used in commercial service shops, home garages, or any area where space is at a premium and durability is a must.

FEATURES

Lifting capacity: 6,000 lbs.
Max. lifting height: 77 1/8″ (1960 mm).
Min height: 4 1/2″ (115 mm).
Self-lubricating UHMW Polyethylene sliders and a self-lubricating bronze Bushings.
High quality cylinders and power units are manufactured to high standards
Five-year Warranty on Steel Components, Three-year Warranty on Hydraulic Parts and Two Years on Electrical Components

Specifications

Model	SL-6
Lifting Capacity	6,000 lbs (2,722 kg)
Lifting Time	32 S (220V)

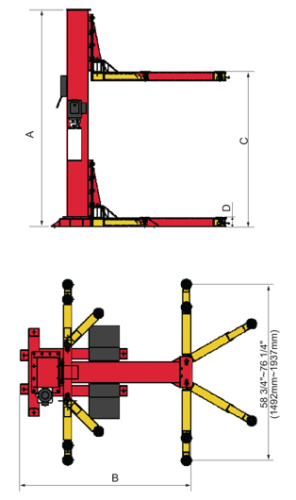

A:Overall Height	108 7/8″ (2766mm)
B:Overall Width	80″ (2032mm)
C: Lifting Height	71 7/8″~77 1/8″ (1825mm ~ 1960mm)
D:Minimum Pad Height	4 1/2″ (115mm)
Motor	1.0HP, 110V/60Hz Single Phase \| 2.0HP, 220V/60Hz Single Phase
Gross Weight	1642lbs (745kg)
